Kia Cee'd: Heater / Heater Unit Components and components location

Kia Cee'd JD Service Manual / Heating,Ventilation, Air Conditioning / Heater / Heater Unit Components and components location

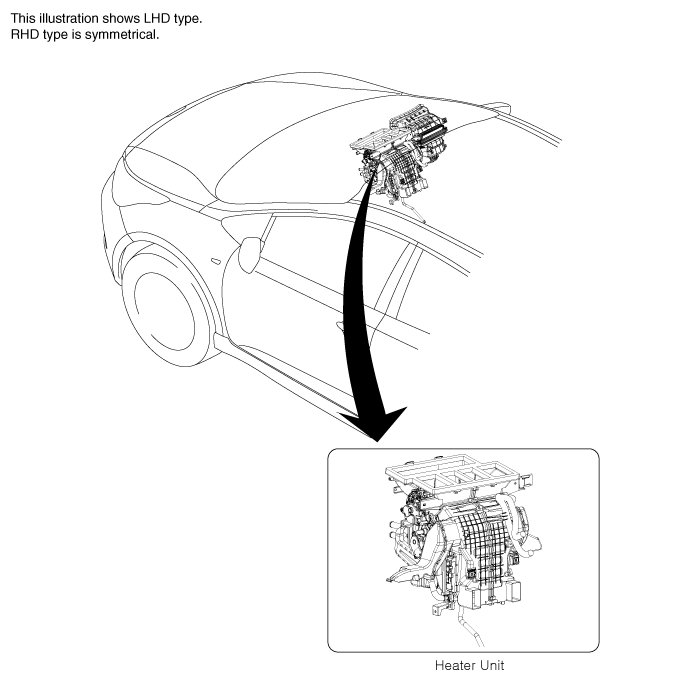

Component Location

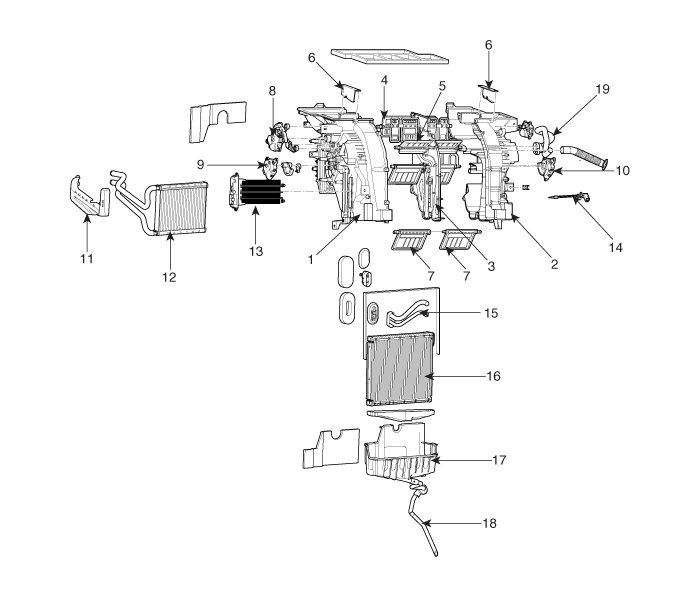

Components


1. Heat Case (Left)
2. Heat Case (Right)
3. Separator
4. Defog Door
5. Vent Door
6. Vent Guide
7. Temp Door
8. Mode Control Actuator
9. Temperature Control Actuator (Left)
10. Temperature Control Actuator (Right)
11. Heater Pipe Cover
12. Heater Core
13. PTC Heater
14. Evaporator Temperature Sensor
15. Evaporator Pipe
16. Evaporator Core
17. Heater & Evaporator Lower Case
18. Drain Hose
19. Aspirator Hose

Heater
...

Heater Unit Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station. ...
