Kia Cee'd: Headlight and front fog light aiming / Head lamp low beam (RHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
Head lamp low beam (LHD)
■ Based on 10m screen
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the
picture.
3. When aiming the low beam, vertical ai ...

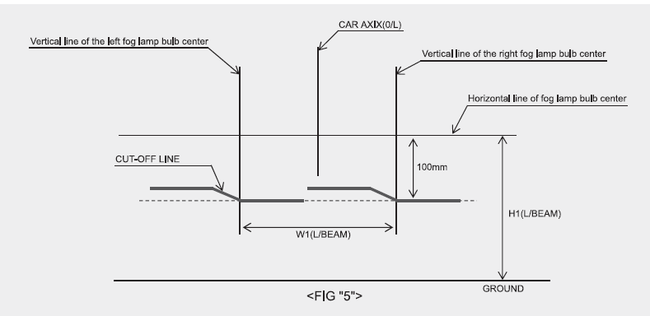

Front fog light
■ Based on 10m screen
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded
region). ...
