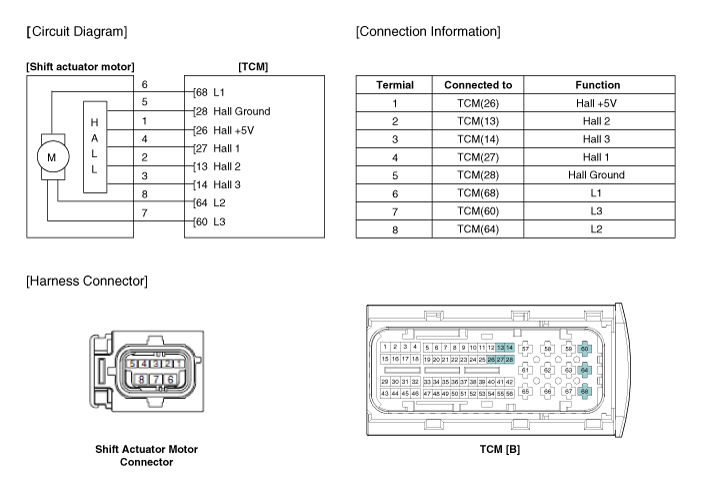

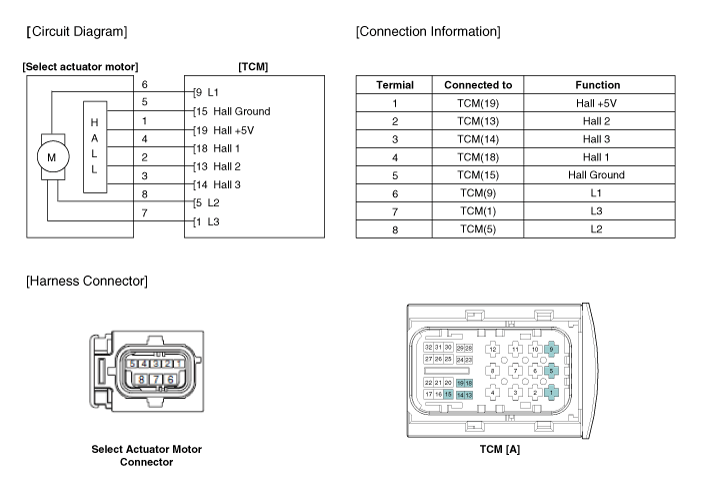

Kia Cee'd: Dual Clutch Transmission Control System / Gear Actuator Motor Schematic diagrams

Gear Actuator Motor Specifications

Specification Gear Actuator Motor ▷ Specifications   Item Specifications Operating condition (°C) °F (20)68 ...

Gear Actuator Motor Repair procedures

Inspection 1. Turn off the ignition switch. 2. Disconnect the shift actuator connector (A) and select actuator connector (B). ...
