Kia Cee'd: ABS(Anti-Lock Brake System) / Front Wheel Speed Sensor Components and components location

Kia Cee'd JD Service Manual / Brake System / ABS(Anti-Lock Brake System) / Front Wheel Speed Sensor Components and components location

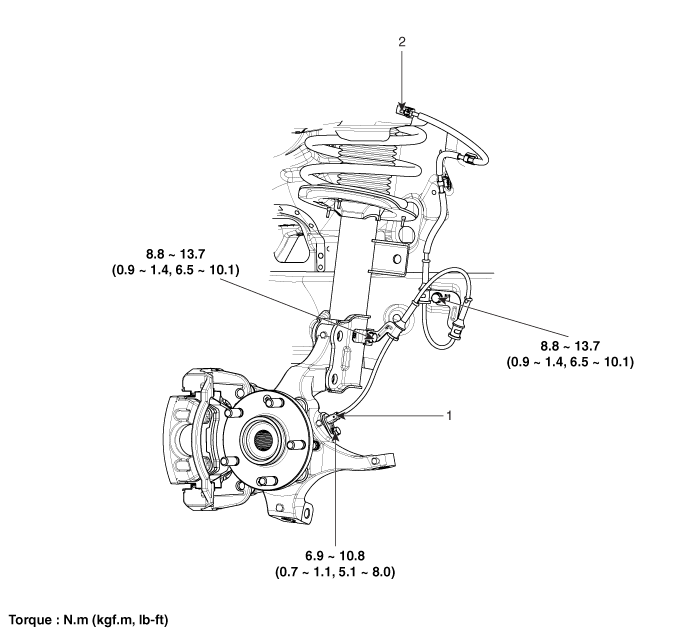

Components


1. Front wheel speed sensor
2. Front wheel speed sensor connector

ABS Control Module Repair procedures
Removal [LHD] 1. Turn the ignition switch OFF. 2. Pull up the lock of the HECU connector (A), and then disconnect the connector. ...

Front Wheel Speed Sensor Repair procedures
Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
