Kia Cee'd: Brake System / Front Disc Brake Components and components location

Kia Cee'd JD Service Manual / Brake System / Brake System / Front Disc Brake Components and components location

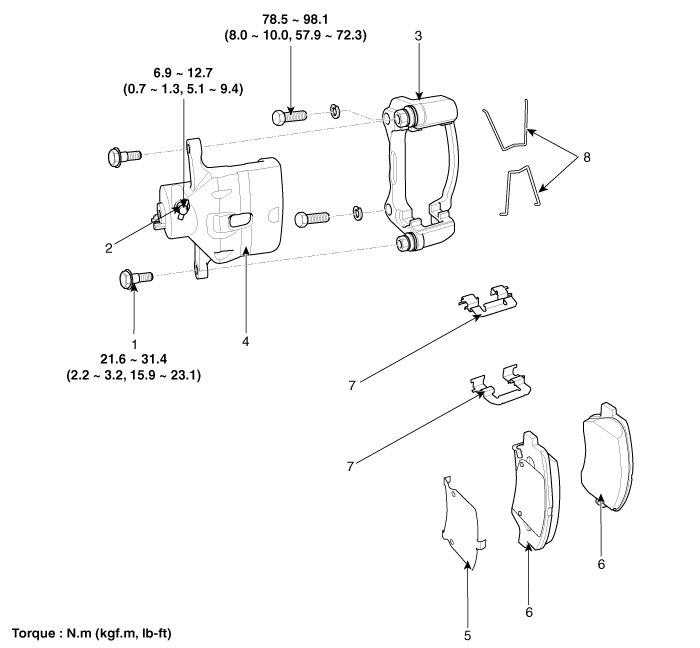

Components


1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer
8. Return spring

Brake Pedal Repair procedures
Removal [LHD] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. ...

Front Disc Brake Repair procedures
Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) ...
