Kia Cee'd: Engine Room Under Cover / Engine Mounting Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Engine Room Under Cover / Engine Mounting Components and components location

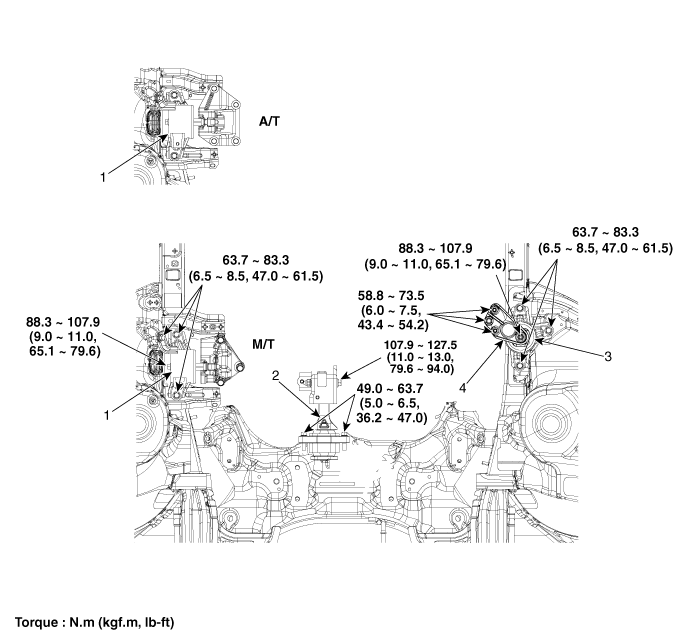

Components

1. Transaxle mounting bracket
2. Roll road bracket

3. Engine mounting bracket
4. Engine mounting support bracket

Repair procedures

Removal and Installation 1. Remove the engine room under cover (A). Tightening torque: 3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3 ...

Engine Mounting Repair procedures

Removal and Installation [Rollroad mounting] 1. Rollroad bracket mounting bolts and rollroad bracket (A). Tightening torque ...
