Kia Cee'd: Engine Control System / CVVT Oil Control Valve (OCV) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) Schematic diagrams

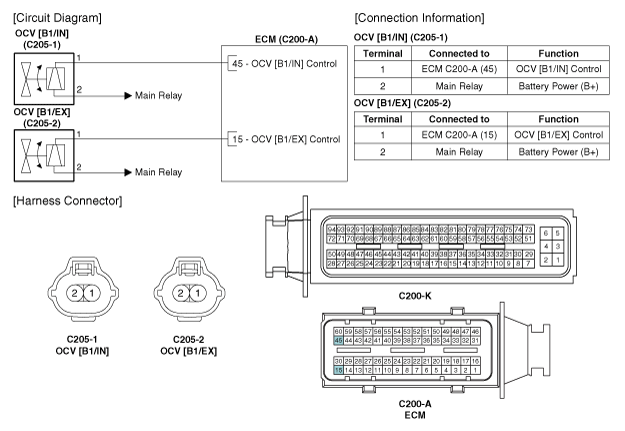

Circuit Diagram

CVVT Oil Control Valve (OCV) Specifications
Specification   Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance betwee ...
