Kia Cee'd: Manual Transaxle Control System / Control Shaft Complete Components and components location

Kia Cee'd JD Service Manual / Manual Transaxle System / Manual Transaxle Control System / Control Shaft Complete Components and components location

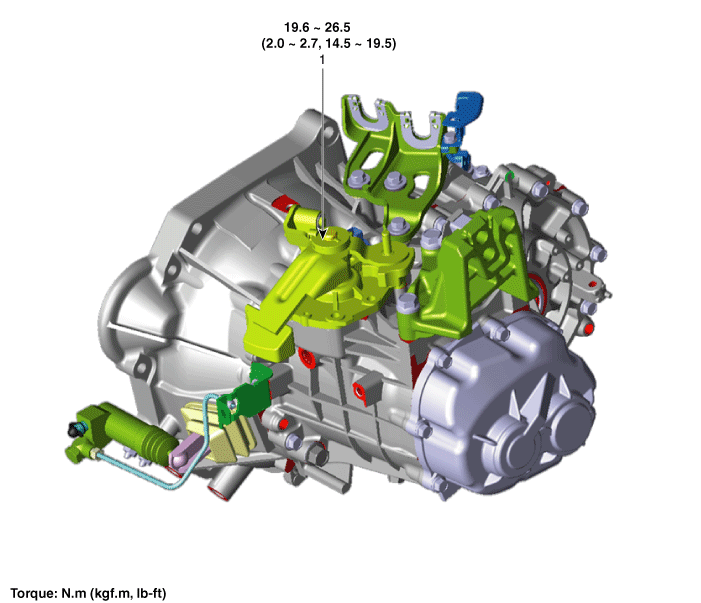

Components Location

1. Control Shaft Complete
Control Cable Repair procedures
Removal 1. Move the shift lever to 4th gear. 2. Remove the air duct and the air cleaner assembly. (Refer to Engine Mechanical S ...

Control Shaft Complete Repair procedures
Removal 1. Move the shift lever to neutral gear position. 2. Remove the air cleaner assembly. (Refer to Engine Mechanical Syste ...
