Kia Cee'd: Power Door Mirrors / Components and components location

Kia Cee'd Service Manual / Body Electrical System / Power Door Mirrors / Components and components location

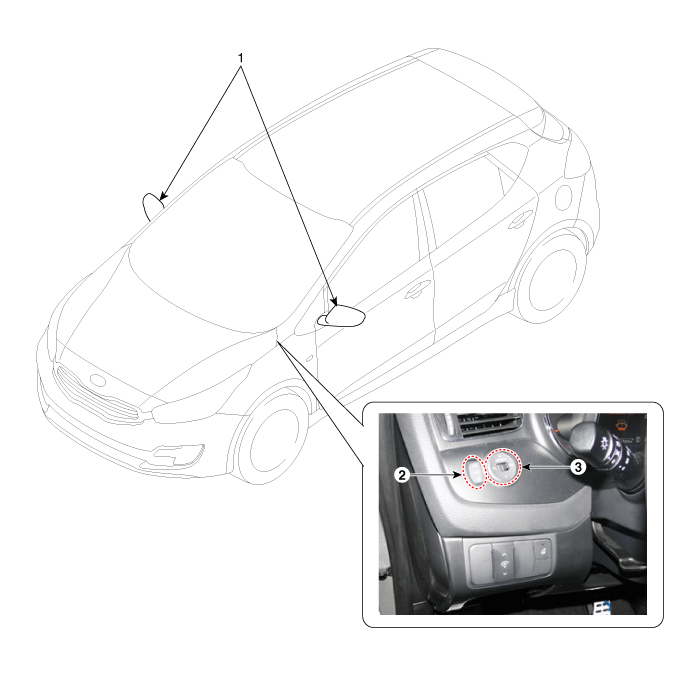

Components


1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
