Kia Cee'd: Power Door Locks / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Power Door Locks / Components and components location

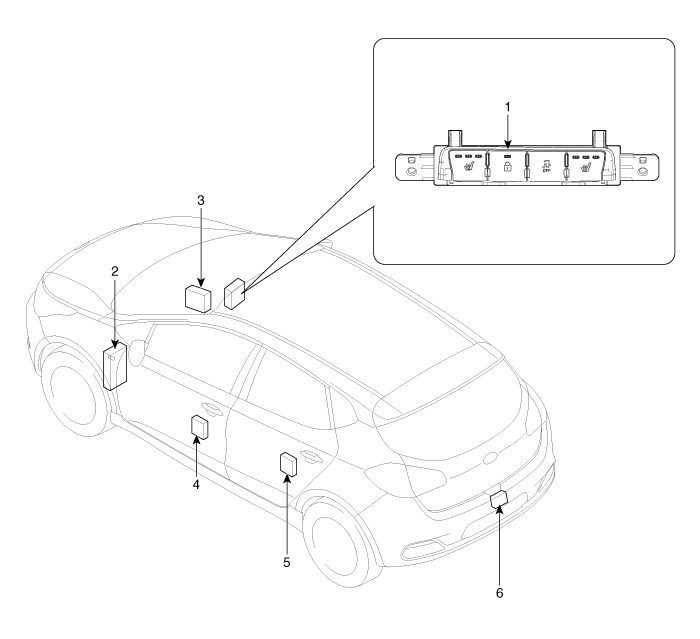

Component Location

1. Door lock switch
2. SJB (Smart Junction Box)
3. BCM (Body Control Module)

4. Front door lock actuator
5. Rear door lock actuator
6. Tailgate open actuator
