Kia Cee'd: Rear Bumper / Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location

Components

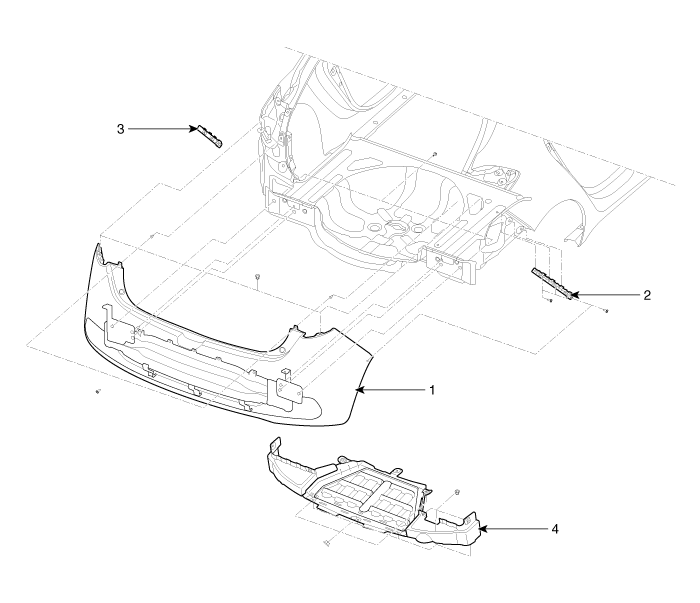

[5Door]


1. Rear bumper cover
2. Rear bumper side bracket [RH]
3. Rear bumper side bracket [LH]
4. Rear bumper under cover

Components (2)

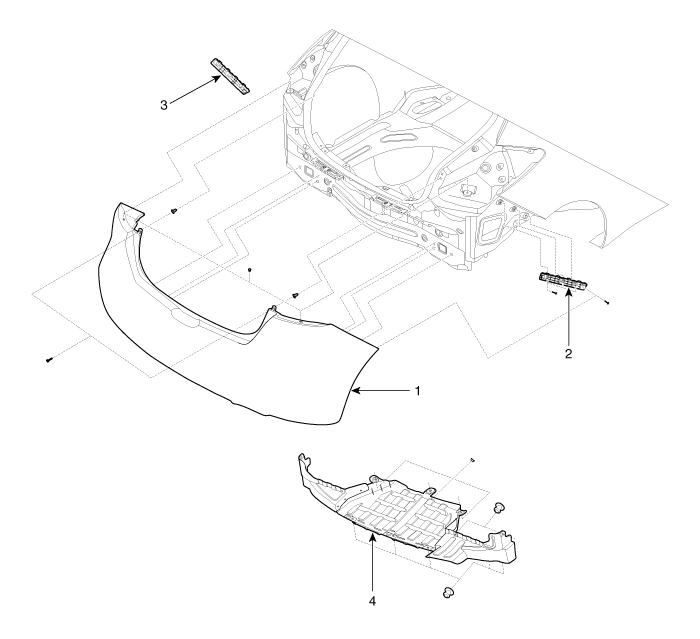

[3Door]


1. Rear bumper cover
2. Rear bumper side bracket [RH]
3. Rear bumper side bracket [LH]
4. Rear bumper under cover

Rear Bumper
...

Rear Bumper Cover Components and components location
Component Location   1. Rear bumper cover ...
