Kia Cee'd: Roof Trim / Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Roof Trim / Components and components location

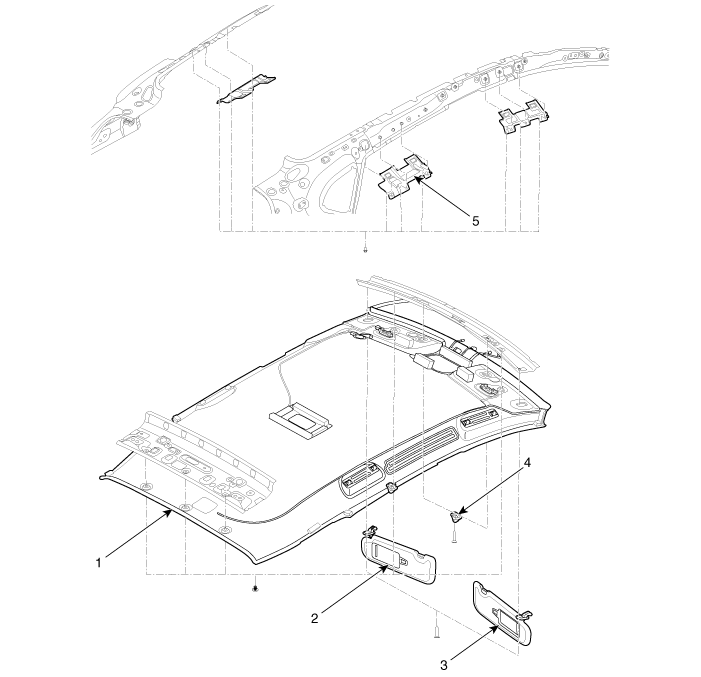

Components (1)

[General Type]

(5Door)

1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]

4. Retainer
5. Assist handle bracket

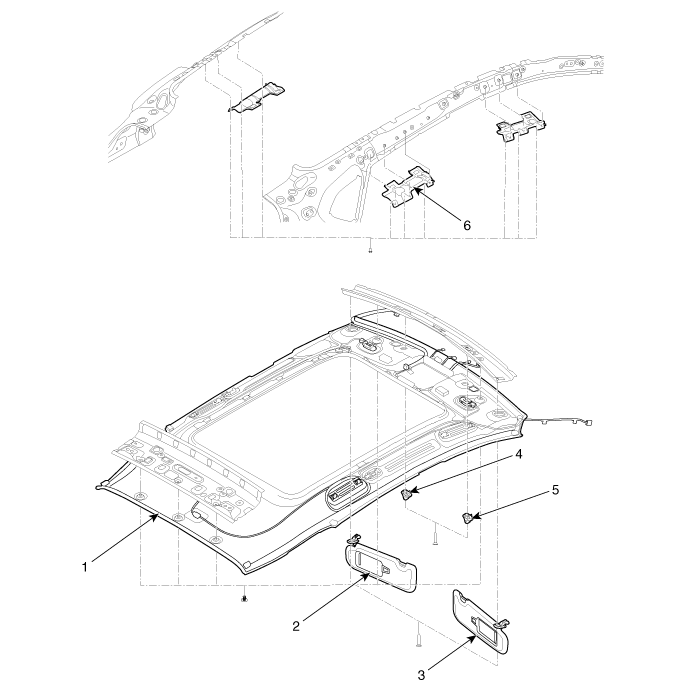

Components (2)

[Panoramaroof Type]

(5Door)

1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]

4. Retainer [LH]
5. Retainer [RH]
6. Assist handle bracket

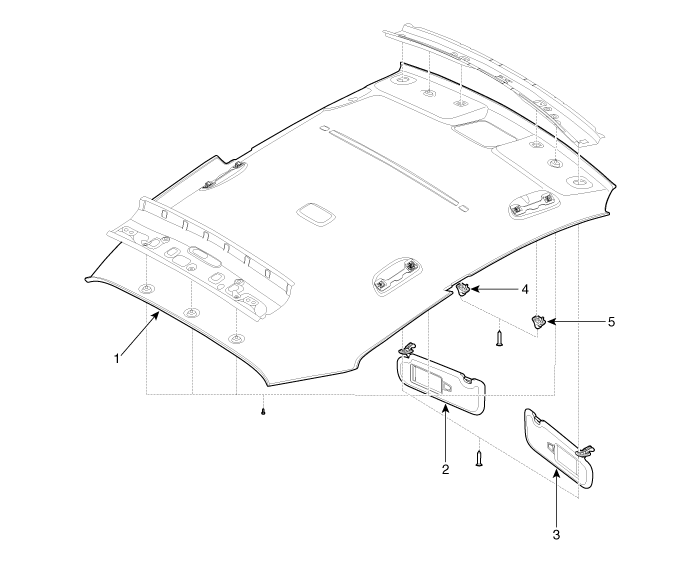

Components (3)

[General Type]

(3Door)

1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]

4. Retainer [LH]
5. Retainer [RH]

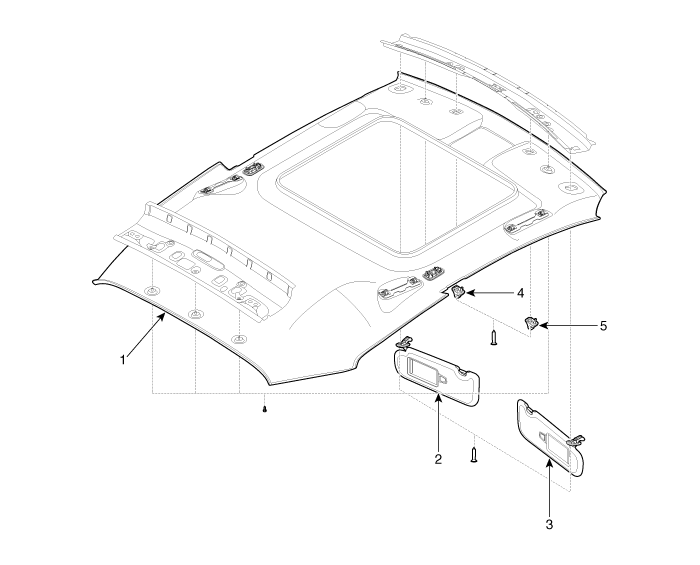

Components (4)

[Panoramaroof Type]

(3Door)

1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]

4. Retainer [LH]
5. Retainer [RH]
