Kia Cee'd: Restraint / Components and components location

Kia Cee'd JD Service Manual / Restraint / Components and components location

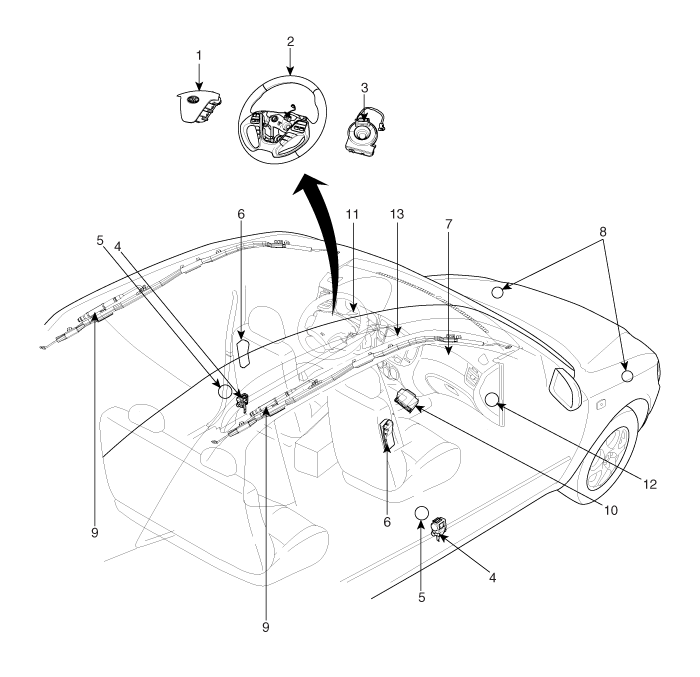

Components [LHD]


1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front Impact Sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Airbag Warning Lamp
12. PAB ON/OFF switch
13. PAB ON/OFF lamp

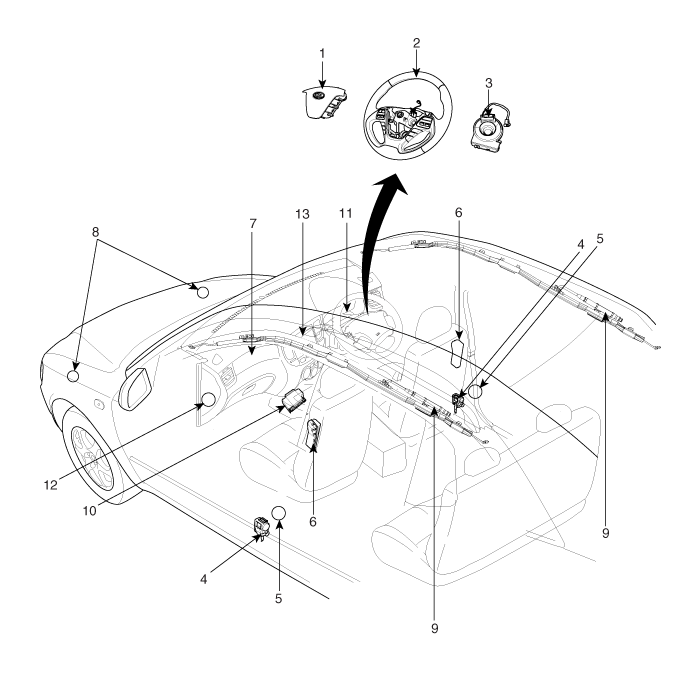

Components [RHD]


1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front Impact Sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Airbag Warning Lamp
12. PAB ON/OFF switch
13. PAB ON/OFF lamp

Components Location

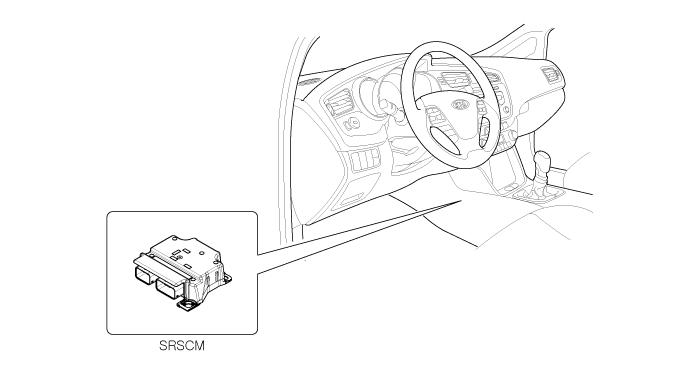

Supplemental Restraint System Control Module (SRSCM)

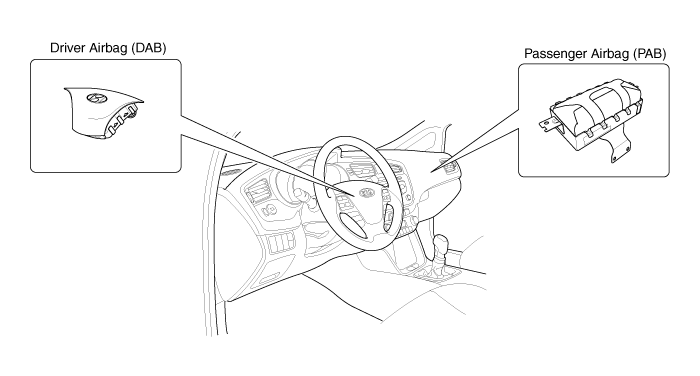

Driver Airbag (DAB) / Passenger Airbag (PAB)

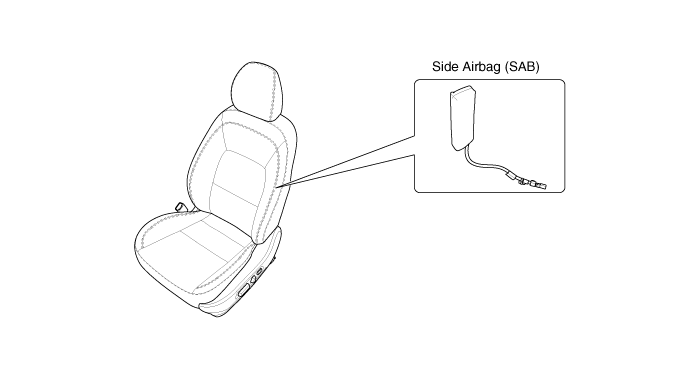

Side Airbag (SAB)

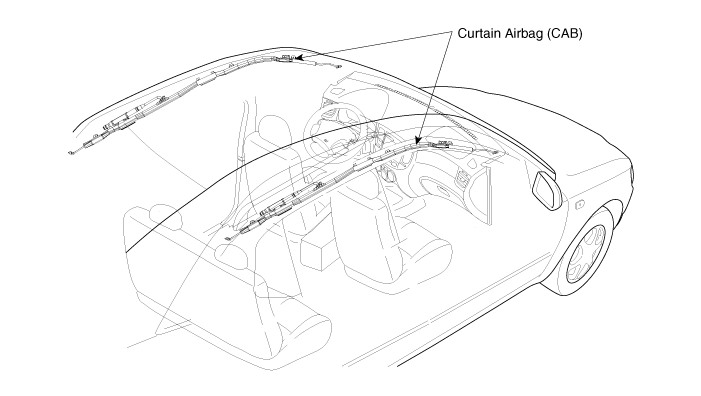

Curtain Airbag (CAB)

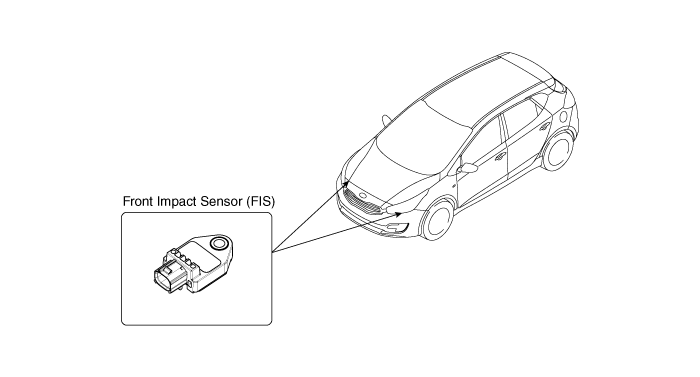

Front Impact Sensor (FIS)

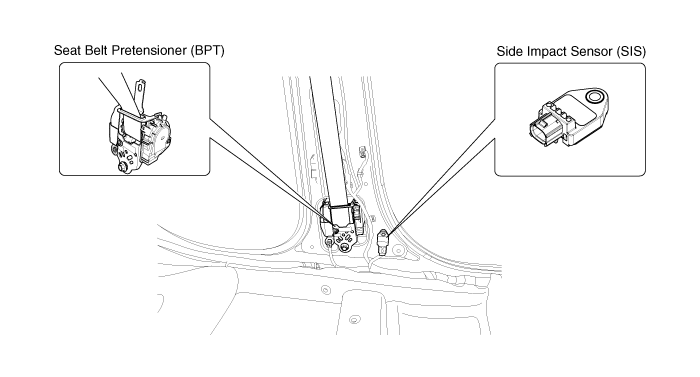

Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT)
