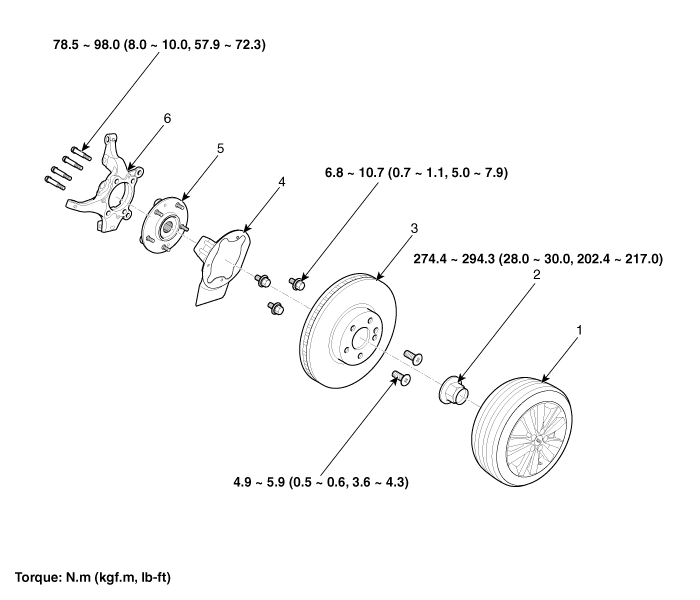

Components

1. Tire
2. Drive shaft coking nut
3. Brake disc

4. Dust cover
5. Wheel hub assembly
6. Knuckle

Front Axle Assembly / Front Hub / Knuckle

...

Repair procedures

Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front ...
