Kia Cee'd: Concentric Slave Cylinder Assembly / Components and components location

Kia Cee'd JD Service Manual / Clutch System / Concentric Slave Cylinder Assembly / Components and components location

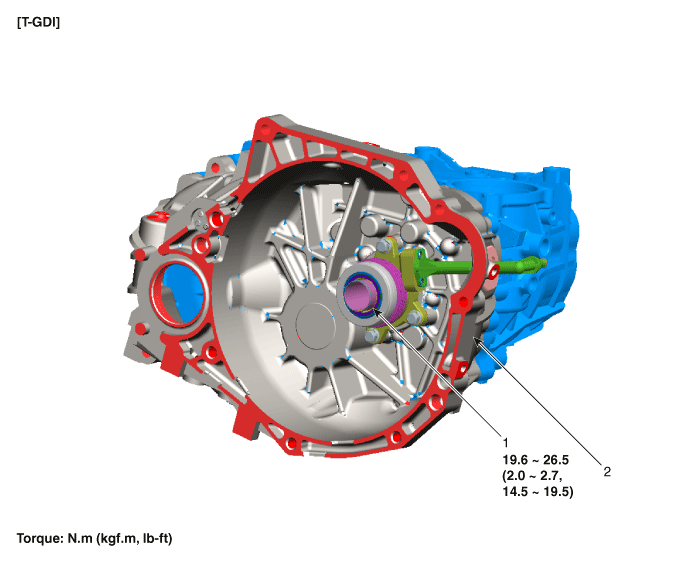

Component

1. Concentric slave cylinder assembly

2. Manual transaxle

Concentric Slave Cylinder Assembly

...

Repair procedures

Removal 1. Remove the transaxle assembly. G 1.6 MPI (Refer to Manual Transaxle System - " Manual Transaxle") G 1.4 MPI (Refer to Manual ...
