Kia Cee'd: Fuel Delivery System / Components and components location

Kia Cee'd JD Service Manual / Fuel System / Fuel Delivery System / Components and components location

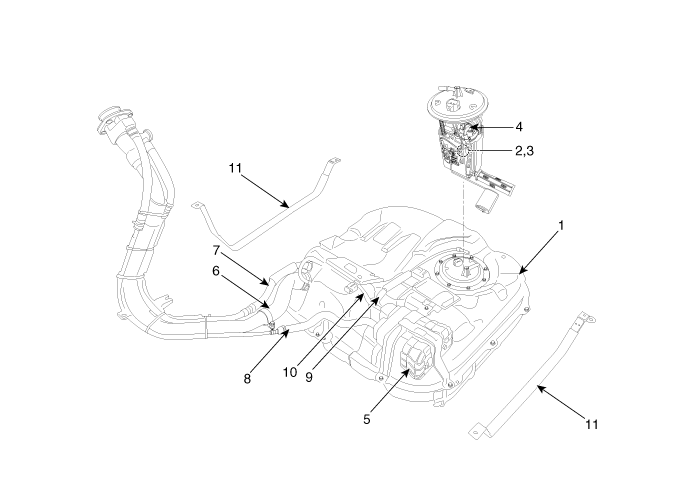

Components Location


1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel filler hose
7. Leveling hose
8. Ventilation hose (Canister ↔ Atmosphere)
9. Vapor tube (Canister ↔ Intake manifold)
10. Vapor hose (Canister ↔ Fuel tank)
11. Fuel tank band

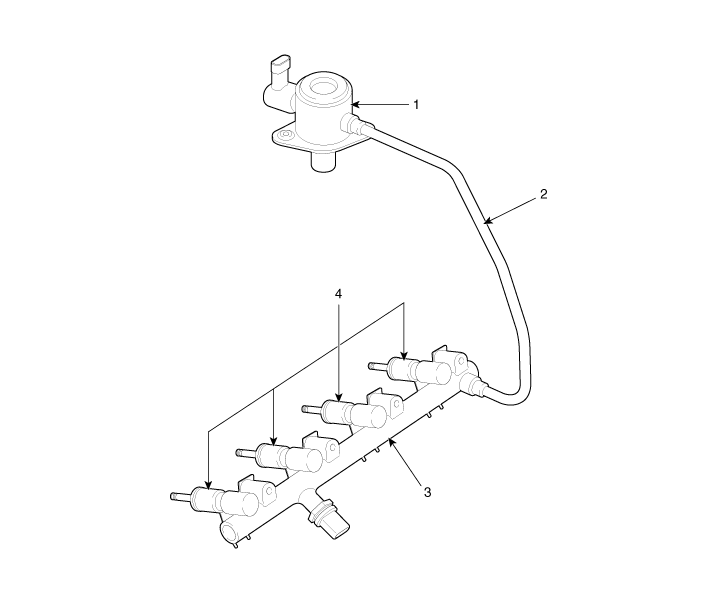

[High Pressure Fuel Line]


1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe
3. Delivery Pipe
4. Injector


In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don’t do any repair work right after engine stops.
