Kia Cee'd: Brake System / Brake Booster Components and components location

Kia Cee'd JD Service Manual / Brake System / Brake System / Brake Booster Components and components location

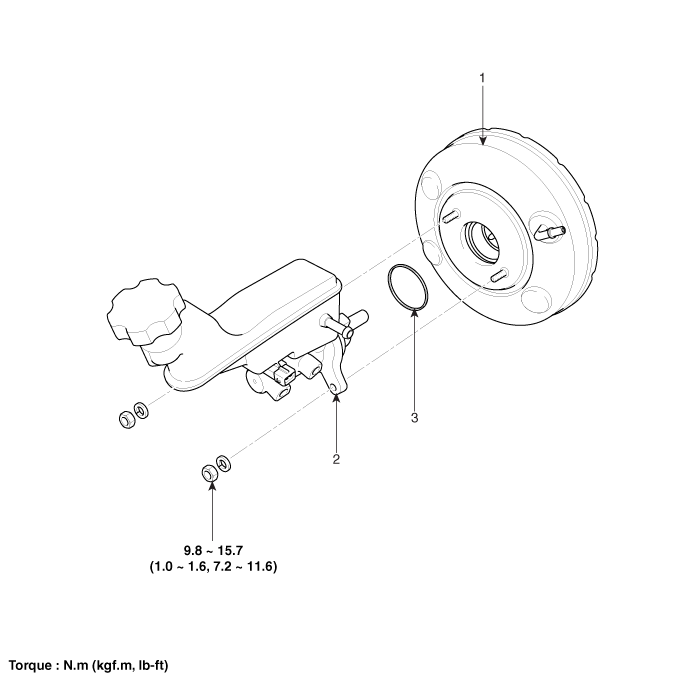

Components [LHD]


1. Brake booster
2. Master cylinder assembly
3. O-ring

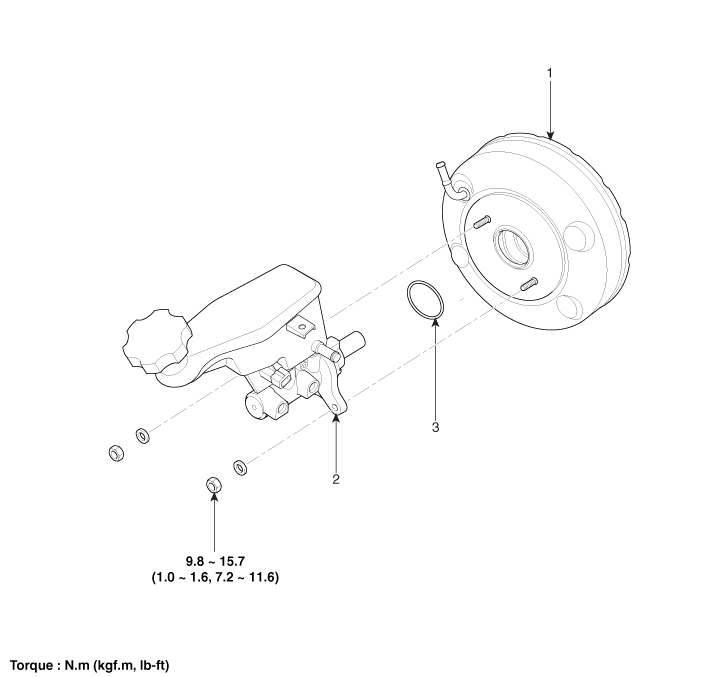

Components [RHD]


1. Brake booster
2. Master cylinder assembly
3. O-ring

Repair procedures
Operation and Leakage Check Check all of the following items:   Component Procedure Brake Booster (A) Check brake operatio ...

Brake Booster Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, ...
