Kia Cee'd: Manual Transaxle System / Back-up Lamp Switch Repair procedures

Kia Cee'd Service Manual / Manual Transaxle System / Manual Transaxle System / Back-up Lamp Switch Repair procedures

Inspection
1.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.
Disconnect the back up lamp switch connector (A).

4.

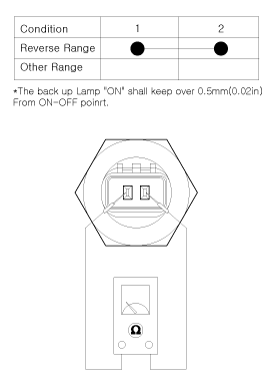

Check the continuity between power terminal and signal terminal.
Specification : Approx. below 1Ω

Removal
1.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.
Disconnect the back up lamp switch connector (A).

4.
Remove the back up lamp switch (A).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

Installation
1.
Install in the reverse order of removal.

The back-up lamp switch must be replaced with new one. (Do not reuse it.)
Back-up Lamp Switch Description and operation
Description • Detects the shift operation to the reverse gear. • When the transaxle is in the reverse condition, the reverse shift r ...

Neutral Switch Specifications
Specifications   Item Specified Type ON/OFF Operation condition Neutral position ...
