Kia Cee'd: Instrument cluster (Normal vision) / Automatic transaxle shift position indicator

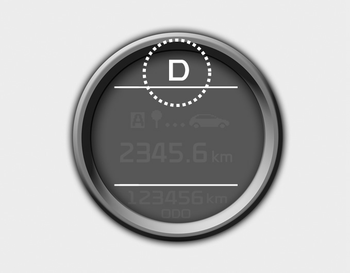

The indicator displays which automatic transaxle shift lever is selected.
Manual transaxle shift indicator
This indicator informs you which gear is
desired while driving to save fuel.
For example
: Indicates that shifting up to
the 3rd
gear is desired (currently the shift
lever is in the 2nd or ...
Automatic Transaxle Shift Indicator in
sports mode
In the Sports Mode, this indicator informs
which gear is desired while driving to
save fuel.
For example
: Indicates that shifting up to
the 3rd
gear is desired (currently the shift
leve ...
