Kia Cee'd: Charging System / Alternator Schematic diagrams

Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / Alternator Schematic diagrams

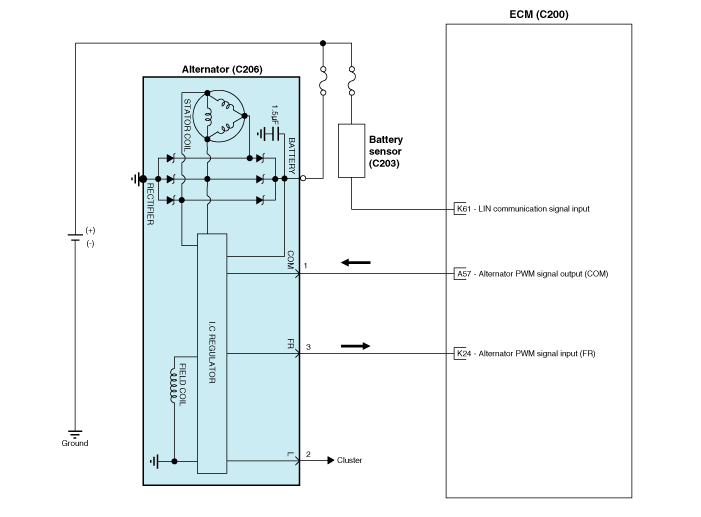

Circuit Diagram

Alternator Components and components location

Components 1. OAD (Overrunning Alternator Decoupler) 2. Front Bracket 3. Front Bearing 4. Stator 5. Rotor 6. Rear Bearing 7. Rear ...

Alternator Repair procedures

Removal 1. Disconnect the battery negative terminal. 2. Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise ...
