Kia Cee'd: Cooling System / Water Temperature Control Assembly Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components and components location

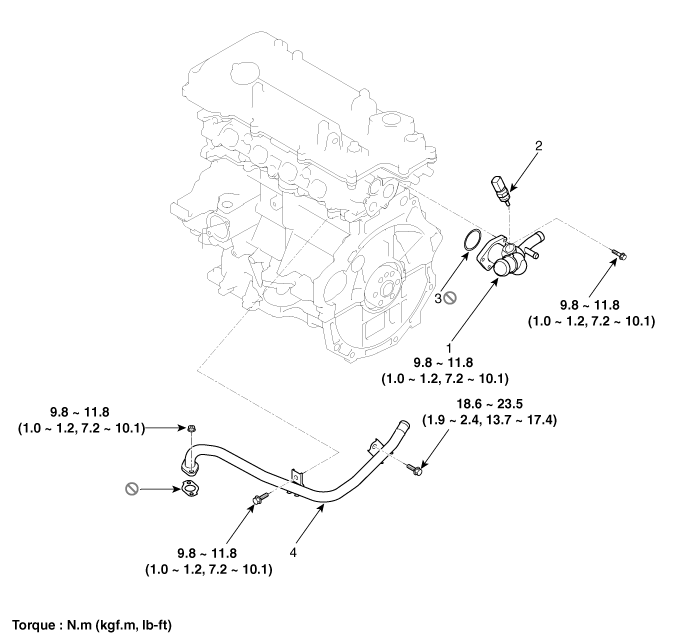

Components

1. Water temperature control assembly
2. Water temperature sensor

3. Gasket
4. Water
5. Bypass hose
