Kia Cee'd: Cooling System / Water pump Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cooling System / Water pump Components and components location

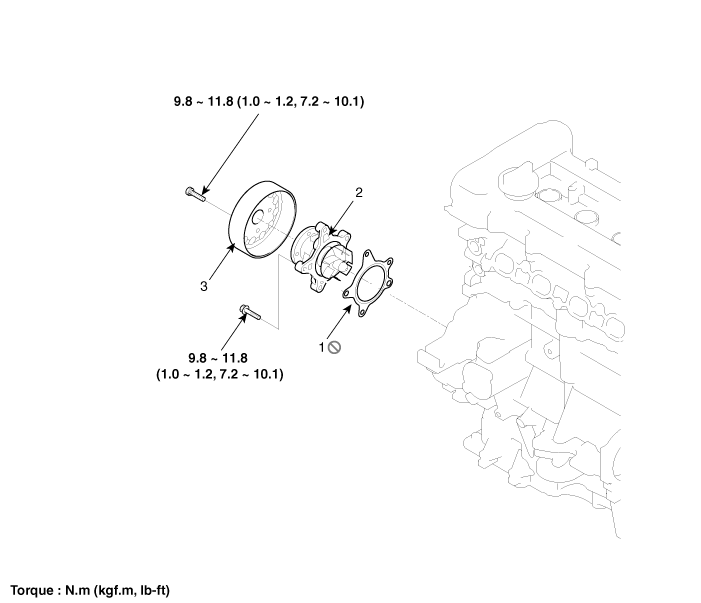

Components

1. Gasket
2. Water pump

3. Water pump pulley
