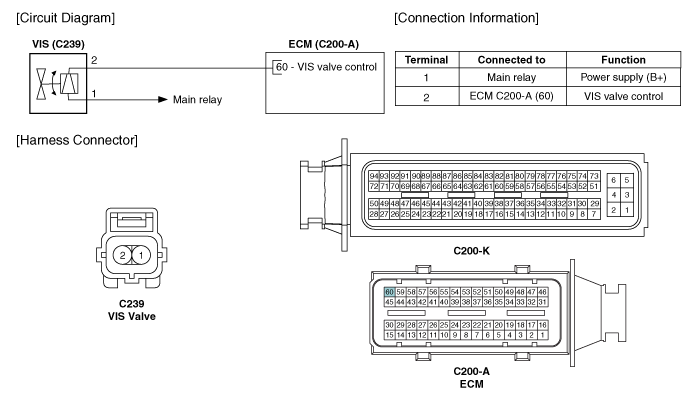

Kia Cee'd: Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic diagrams

Variable Intake Solenoid (VIS) Valve Specifications

Specification   Item Specification Coil resistance (Ω) 30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance ...
