Kia Cee'd: Brake System / Vacuum Pump Components and components location

Kia Cee'd JD Service Manual / Brake System / Brake System / Vacuum Pump Components and components location

Components

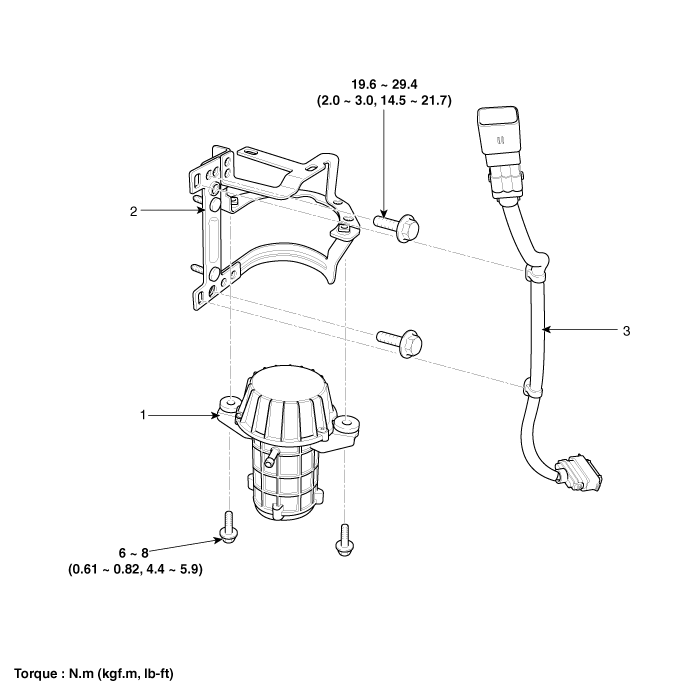

Gamma 1.6 T-GDI

1. Vacuum pump
2. Bracket

3. Lead wire assembly

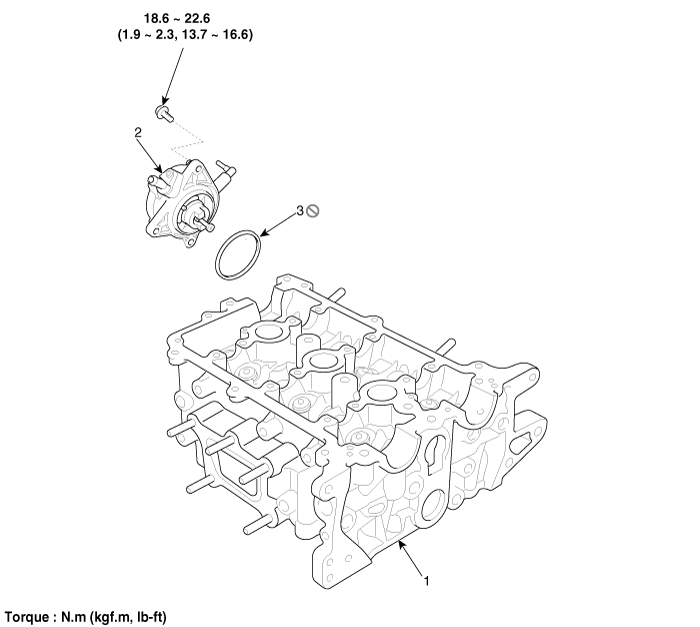

Kappa 1.0 T-GDI

1. Cylinder head
2. Vacuum pump

3. Vacuum pump O-ring

Brake Booster Repair procedures

Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, ...

Vacuum Pump Repair procedures

Removal Gamma 1.6 T-GDI 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the under covers (A) ...
