Kia Cee'd: Mp3 CD Mode / Using MP3 CD Mode
Playing/Pausing MP3 Files
Once an MP3 disc is inserted the mode will automatically start and being playing.
While playing, press the
button
to pause and press
button to
play.
✽ NOTICE
If there are numerous files and folders within the disc, reading time could take more than 10 seconds and the list may not be displayed or song searches may not operate. Once loading is complete, try again.
Changing Files
Press the
key to move to
the previous or next file.
✽ NOTICE
- Pressing the
key after the
file has been playing for 2 seconds
will start the current file from the
beginning.
- Pressing the
key before
the file has been playing for 1 second
will start the previous file.

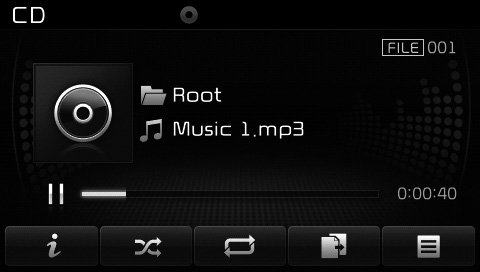

Basic Mode Screen
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random/Scan, displays
the currently operating function.
(3) File Index
Displays the current file number.
(4) File ...
Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
While playing, press and ...
