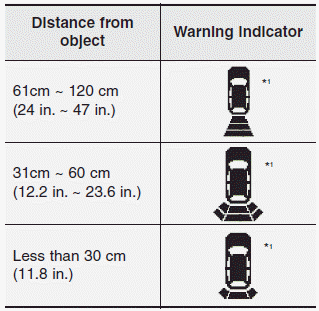

Kia Cee'd: Operation of the rear parking assist system / Type of the warning indicator

Kia Cee'd JD Owners Manual / Features of your vehicle / Rear parking assist system / Operation of the rear parking assist system / Type of the warning indicator

❈ In case the object is between or close to the sensors, the indicator could be different.

Types of warning sound

When an object is 120 cm to 61 cm (47 in. to 23.6 in.) from the rear bumper: Buzzer beeps intermittently When an object is 60 cm to 31 cm (23.6 in. to 12.2 in.) from the rear bumper: ...

Non-operational conditions of rear parking assist system

The rear parking assist system may not operate properly when: 1. Moisture is frozen to the sensor. (It will operate normally when the moisture has been cleared.) 2. The sensor is covered with ...
