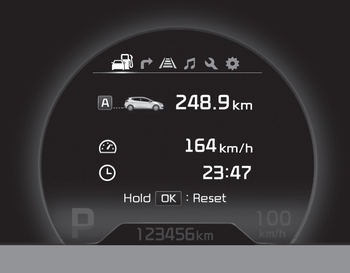

This mode indicates 3 kinds of driving Information.
All stored driving information (except odometer, distance to empty and instant fuel economy) resets if the battery is disconnected.
1. Tripmeter (km or mi.)
This mode indicates the distance of individual trips selected since the last tripmeter reset.
The meter's working range is from 0.0 to 9999.9 km (0.0 to 9999.9 miles).
Pressing the
button for more
than 1
second, clears the tripmeter to zero (0.0).
2. Average speed (km/h or MPH)
This mode calculates the average speed of the vehicle since the last average speed reset.
Even if the vehicle is not in motion, the average speed keeps going while the engine is running.
Pressing the
button for more
than 1
second, when the average speed is displayed,
clears the average speed to zero
(---).
3. Elapsed time
This mode indicates the total time traveled since the last driving time reset.
Even if the vehicle is not in motion, the driving time keeps going while the engine is running.
The meter’s working range is from 0:00~99:59.
Pressing the
button for more
than 1
second, when the driving time is being
displayed, clears the driving time to zero
(0:00).
Driving information mode
Lane Departure Warning System
