Kia Cee'd: Barrier net (wagon) / To install the barrier net

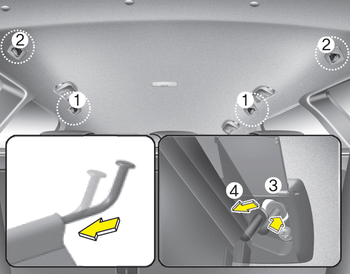

1. Open the cover (if equipped) for the holder position (1) or (2) you want to install.

2. Compress the one side net upper shaft to length direction before insert the net upper shaft into the large hole (3) and then secure by sliding into the small hole (4).

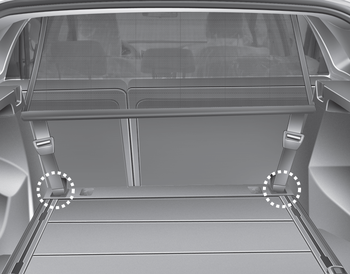

3. Hang the net strap hooks in the corresponding hook holders on the floor behind the front seat or rear seat.

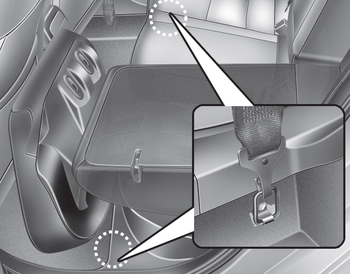

This symbol indicates the position of the hook holders on the floor behind the rear seat.

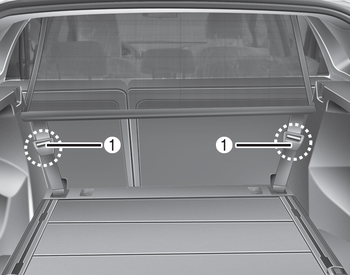

4. Fasten the straps, by using the adjuster (1).

WARNING

WARNING

Barrier net (wagon)
Your vehicle is equipped with a barrier net. When you load some cargoes on the rear seat or rear cargo area, you must install the barrier net behind front seatback or rear seatback. It is de ...

To remove the barrier net
1. Loosen the straps by using the strap adjusters and remove the strap hooks from the hook holders. 2. Remove the net upper shaft by pulling it through the large holes. 3. Remove the barrier n ...
