Kia Cee'd: Automatic climate control system / To defrost outside windshield

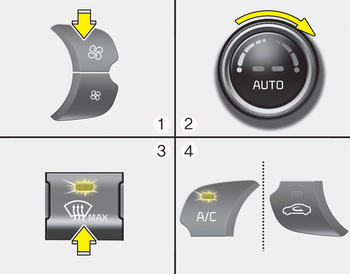

1. Set the fan speed to the highest position.
2. Set the temperature to the hottest (HIGH) position.
3. Press the
button.
4. The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.
To defog inside windshield
1. Set the fan speed to the desired
speed.
2. Select desired temperature.
3. Press the button.
4. The air conditioning will turn on
according to the detected ambient temperature
and outsid ...
Auto defogging system
(Only for automatic climate control
system)
Auto defogging reduces the possibility of
fogging up the inside of the windshield by
automatically sensing the moisture of
inside the windshield.
The auto defogging system operates
when the ...
Other information:
Kia Cee'd JD Service Manual: Intake Air Temperature Sensor (IATS) Description and operation
Description
Intake Air Temperature Sensor (IATS) is included inside Manifold Absolute Pressure
Sensor and detects the intake air temperature.
To calculate precise air quantity, correction of the air temperature is needed
because air density varies according to the temperat ...
Kia Cee'd JD Service Manual: Components and components location
Component Location
1. EMS box assembly
2. Cooling fan(Low) relay
3. Cooling fan(High) relay
4. ESS relay
5. Blower relay
6. Rear defogger relay
7. HAC relay
8. SSB4(IG2) relay
9. Front wiper relay
10. SSB3(IG1) relay
...
