Kia Cee'd: Manual climate control system / To defog inside windshield

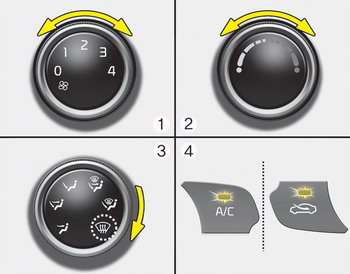

1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Select the
position.
4. The outside (fresh) air will be selected
automatically. If the position is
selected, air conditioning (if equipped)
will also be selected automatically.
If the air conditioning and/or outside (fresh) air position are not selected automatically, press the corresponding button manually.
To defrost outside windshield
1. Set the fan speed to the highest position.
2. Set the temperature to the hottest
position.
3. Select the position.
4. The outside (fresh) air and air conditioning
will be selected automat ...
