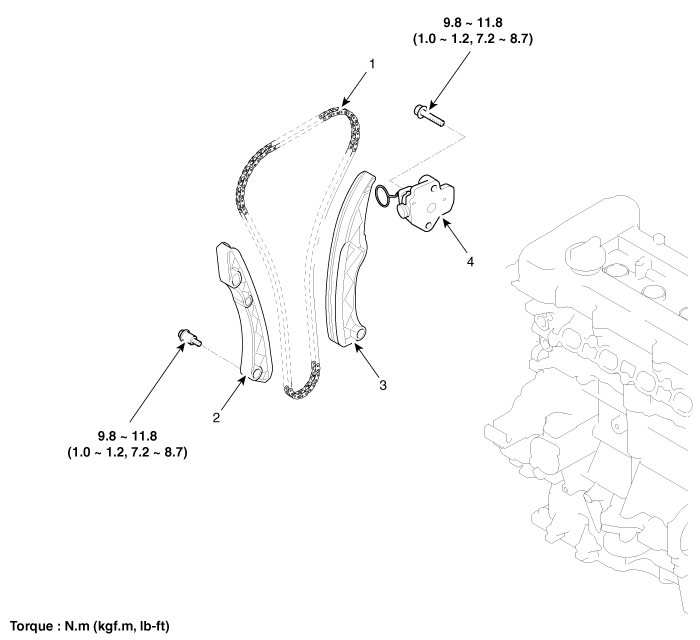

Components

1. Timing chain
2. Timing chain guide

3. Timing chain arm
4. Timing chain auto tensioner

Timing Chain Cover Repair procedures

Removal • Use fender covers to avoid damaging painted surfaces. ...

Timing Chain Repair procedures

Removal 1. Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover. 2. Re ...
