Kia Cee'd: Panorama sunroof / Tilting the sunroof

When the sunshade is closed

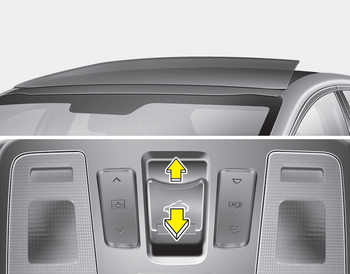

If you push the sunroof control lever upward, the sunshade will slide all the way open then the sunroof glass will tilt.

To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

When the sunshade is opened

If you push the sunroof control lever upward, the sunroof glass will tilt.

To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

Sliding the sunroof
When the sunshade is closed If you pull the sunroof control lever backward, the sunshade will slide all the way open then the sunroof glass will slide all the way open. To stop the sunroof mo ...

Closing the sunroof
To close the sunroof glass with the sunshade Push the sunroof control lever forward or full it down. The sunroof glass will close. Then to close sunshade - Press the sunshade control switch(2) ...
