Kia Cee'd: Smart key function / Tailgate unlocking

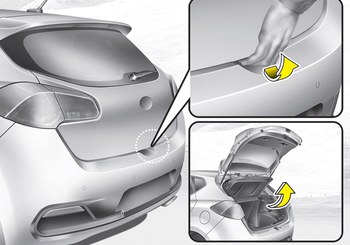

■ 3 Door and 5 Door

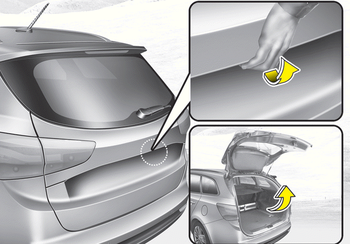

■ Wagon
1.Carry the smart key.
2. Press the tailgate handle switch.
3. The tailgate will unlock.
✽ NOTICE
- Once the tailgate is opened and then closed, the tailgate will lock automatically.
- The button will only operate when the smart key is within 0.7 m (28 in.) from the tailgate handle.
Unlocking
1. Carry the smart key.
2.Press the button of the front outside
door handle.
3.All doors will unlock and the hazard
warning lights will blink twice. Also, the
outside rearview mirror will auto ...
Smart key precautions
✽ NOTICE
If, for some reason, you happen to lose
your smart key, you will not be able to
start the engine. Tow the vehicle, if
necessary, we recommend that you
contact an authorized ...
