Kia Cee'd: Interior features / Sunvisor
Use the sunvisor to shield direct light through the front or side windows.
To use a sunvisor, pull it downward.

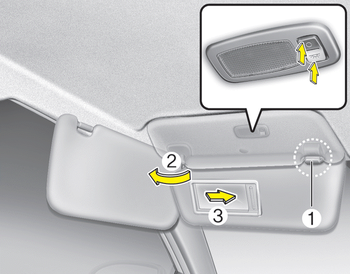

To use a sunvisor for a side window, pull it downward, unsnap it from the bracket (1) and swing it to the side. (2)
To use the vanity mirror, pull down the visor and open the mirror cover (3).
To use the vanity mirror lamp, switch it on. (if equipped)
The ticket holder (4) is provided for holding a tollgate ticket. (if equipped)
✽ NOTICE
Close the vanity mirror cover securely and return the sunvisor to its original position after use.
CAUTION - Vanity mirror lamp (if equipped)
Always have the switch in the off position when the vanity mirror lamp is not in use. If the sunvisor is closed without the lamp off, it may discharge the battery or damage the sunvisor.
WARNING
For your safety, do not obstruct your vision when using the sunvisor.
