Kia Cee'd: Storage compartment / Sunglass holder

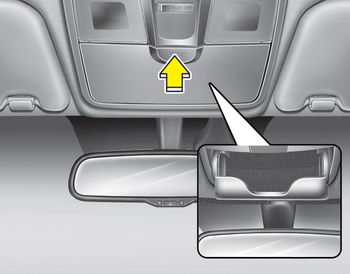

To open the sunglass holder, press the cover and the holder will slowly open. Place your sunglasses in the compartment door with the lenses facing out. Push to close.
WARNING
- Do not keep objects except sunglasses inside the sunglass holder. Such objects can be thrown from the holder in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
- Do not open the sunglasses holder while the vehicle is moving. The rear view mirror of the vehicle can be blocked by an open sunglass holder.
- Do not put the glasses forcibly into a sunglass holder to prevent breakage or deformation of glasses. It may cause personal injury if you try to open it forcibly when the glasses are jammed in holder.
Cool box
You can keep beverage cans or other
items cool in the glove box.
1. Turn on the air conditioning. The temperature
of the cool box will change
according to the temperature of air
conditionin ...
Luggage tray (wagon)
You can place a first aid kit, a reflector triangle
(front tray), tools, etc. in the box for
easy access.
Grasp the handle on the top of the cover
and lift it. ...
