Kia Cee'd: Starting System / Starter Components and components location

Kia Cee'd JD Service Manual / Engine Electrical System / Starting System / Starter Components and components location

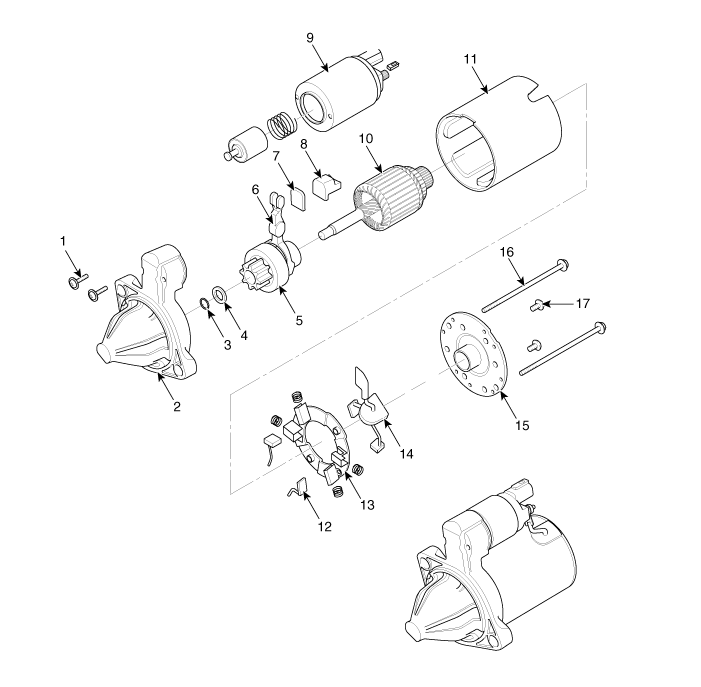

Components

1. Screw
2. Front housing
3. Stop ring
4. Stopper
5. Overunn clutch
6. Lever
7. Lever plate
8. Lever packing
9. Magnet switch assembly

10. Armature assembly
11. Yoke assembly
12. Brush (-)
13. Brush holder
14. Brush (+)
15. Rear bracket
16. Through bolt
17. Screw

Starter Specifications

Specification Starter [Non-ISG type] Item Specification Rated voltage 12 V, 1.2 kW The number of pini ...
