Kia Cee'd: Flex steering wheel / Sport mode

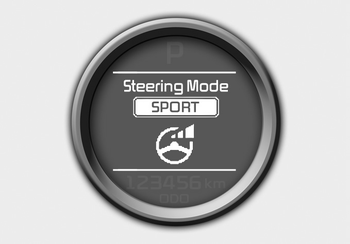

■ Normal vision

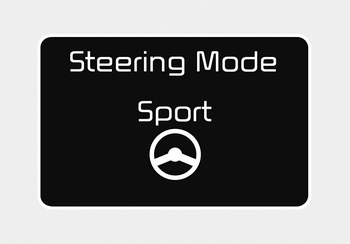

■ Supervision
The steering wheel becomes heavier. The sport mode is usually used when driving in highway.
CAUTION
- For your safety, if you press the steering mode button while operating the steering wheel, the LCD display will change, but the steering effort will not change immediately. After operating the steering wheel, the steering effort will change automatically to the selected mode.
- Be careful when changing the steering mode while driving.
- When the electronic power steering is not working properly, the flex steering wheel will not work.
Comfort mode
■ Normal vision
■ Supervision
The steering wheel becomes lighter. The
comfort mode is usually used when driving
in downtown or parking the vehicle.
Also, the comfort mode helps to drive ...
