Kia Cee'd: Manual Transaxle System / Special service tools

Kia Cee'd JD Service Manual / Manual Transaxle System / Special service tools

Special Service Tools

Tool Name / Number	Illustration	Description
Engine support fixture (bar) 09200-3N000		Used for holding engine assembly when removing / installing transaxle Used with the supporter (09200-2S000)
Engine support fixture (supporter) A: 09200-2S000 B: 09200-2S100 C: 09200-2S200		Used for holding engine assembly when removing / installing transaxle Used with the bar (09200-3N000)
Engine support fixture (adapter) 09200-4X000		Used for holding engine assembly when removing / installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer A: 09431-26100 (Installer) B: 09231-H1100 (Handle)		Used for installing differential oil seal

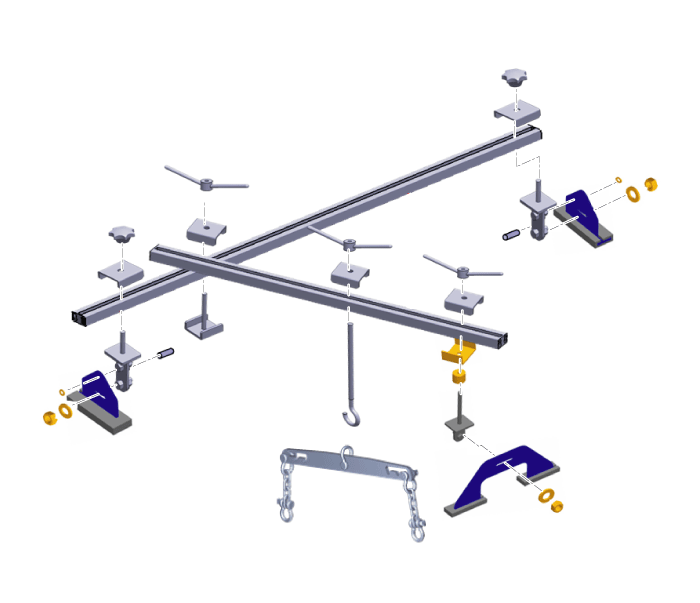

Engine support fixture assembly drawing

Specifications

Specifications Transaxle model M6CF1 Engine type Gasoline 1.6 MPI Gasoline 1.6 GDI Manu ...

Troubleshooting

Troubleshooting Trouble symptom Suspect area Remedy Abnormal noise Oil level (Low) To adding o ...
