Removal

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
1.
Remove the glove box housing.
(Refer to the Body - "Glove Box Housing")
2.
Remove the SPAS unit (A) after removing the nut and disconnecting the connector.

Installation
1.
Connect the connectors and install the SPAS unit (A).
2.
Install the glove box housing.
Inspection
1.
The SPAS (Smart Parking Assist System) can diagnose by using the GDS more quickly.
The SPAS communicates with the GDS and then reads the input/output value and drives the actuator.
2.
To diagnose the SPAS (Smart Parking Assist System) function, select the menu of model and SPAS.
3.

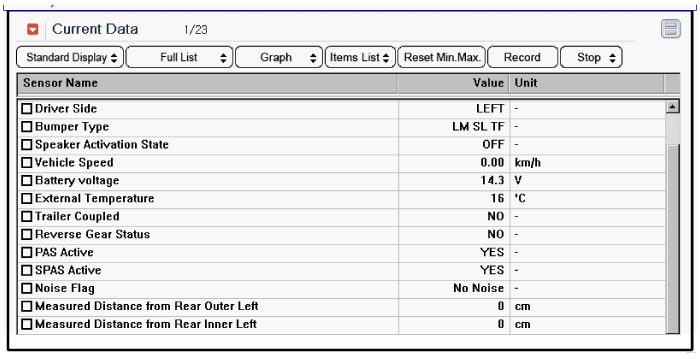

To consult the present input/output value of SPAS, "Current DATA". It provides information of SPAS input/output conditions.

4.

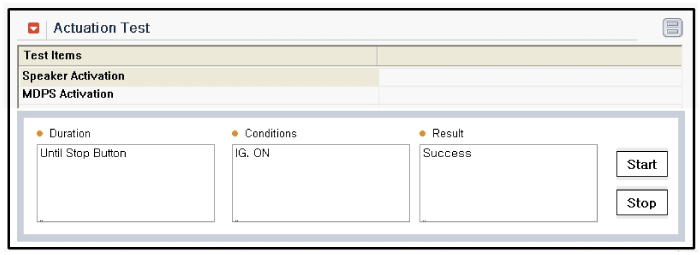

To perform compulsory operation on SPAS input factors, select "ACTUATION TEST".

5.

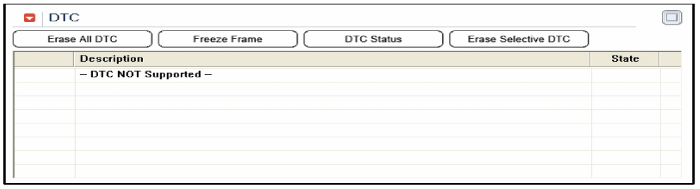

To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES"

6.

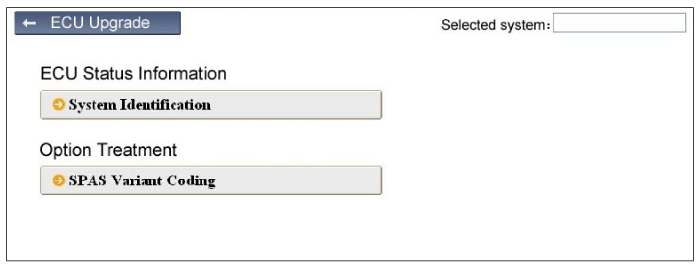

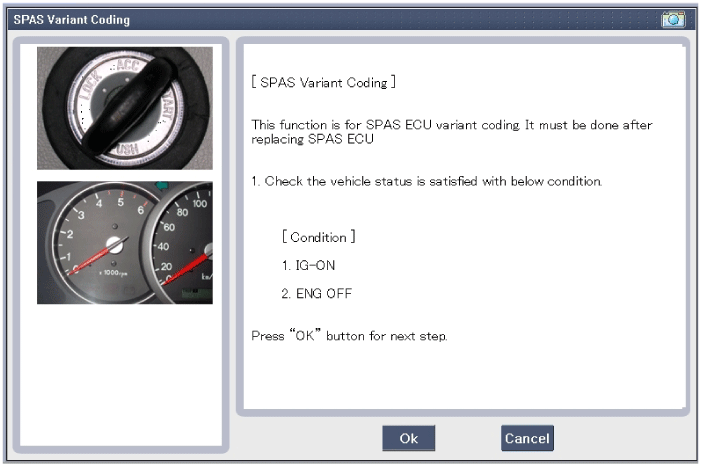

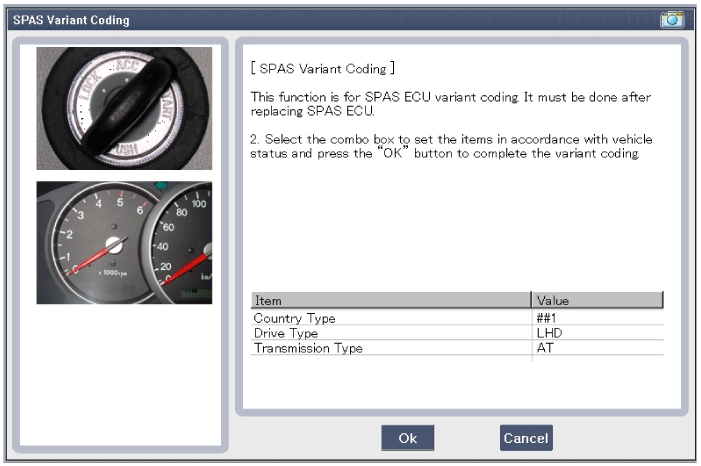

After replacing the SPAS unit, perform the "SPAS Variant Coding" procedure with GDS.

Smart Parking Assist System Unit Schematic diagrams
Circuit diagram ...

Smart Parking Assist System Sensor Components and components location
Component (1) Component (2) ...
