Kia Cee'd: Smart Key System / Smart Key Unit Schematic diagrams

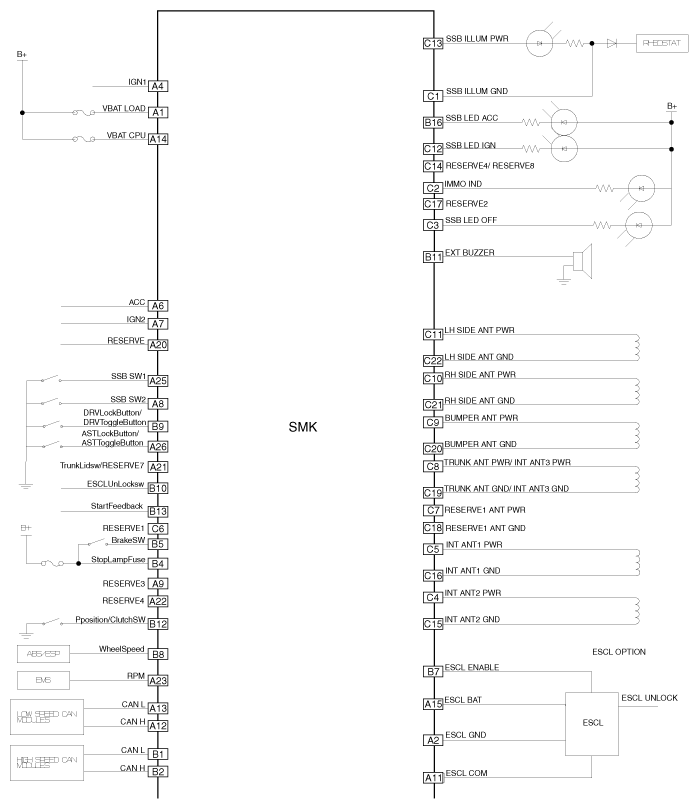

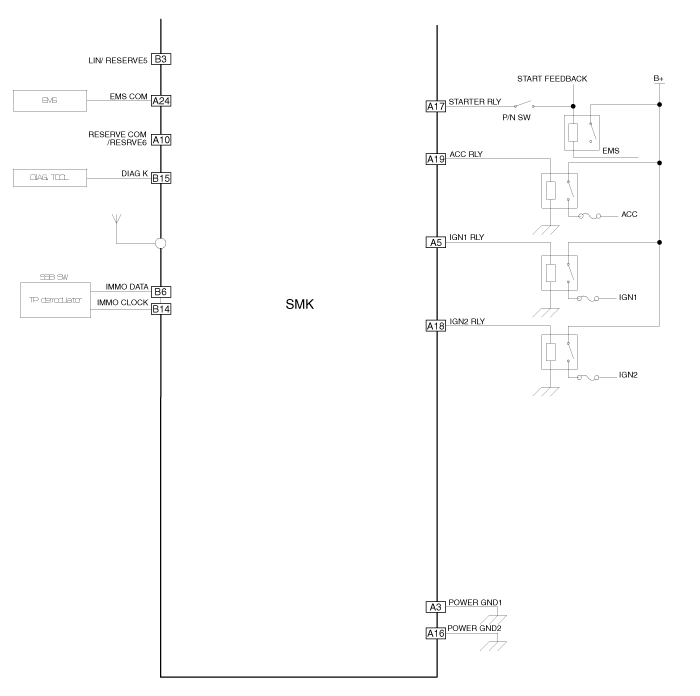

Circuit Diagram

Smart Key Unit Components and components location
Component Connector Pin Information   No. Connector A(26 pins) No. Connector B(16 pins) No. Connecto ...

Smart Key Unit Repair procedures
Inspection Smart Key Unit – Refer to Smart key system - "Smart key Diagnostic" Smart Key Switch – Refer to Smart k ...
