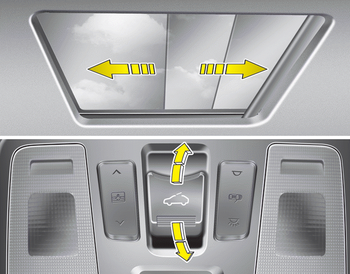

Kia Cee'd: Panorama sunroof / Sliding the sunroof
When the sunshade is closed
If you pull the sunroof control lever backward, the sunshade will slide all the way open then the sunroof glass will slide all the way open. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.
When the sunshade is opened
If you pull the sunroof control lever backward, the sunroof glass will slide all the way open. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.
Sunshade
To open the sunshade, press the sunshade
control switch(1).
To close the sunshade when the sunroof
glass is closed.
- Press the sunshade control switch(2).
- Push the sunroof control ...
Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever
upward, the sunshade will slide all the
way open then the sunroof glass will tilt.
To stop the sunroof movement at any
point ...
