Kia Cee'd: Dual Clutch Transmission Control System / Shift Lever Components and components location

Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Control System / Shift Lever Components and components location

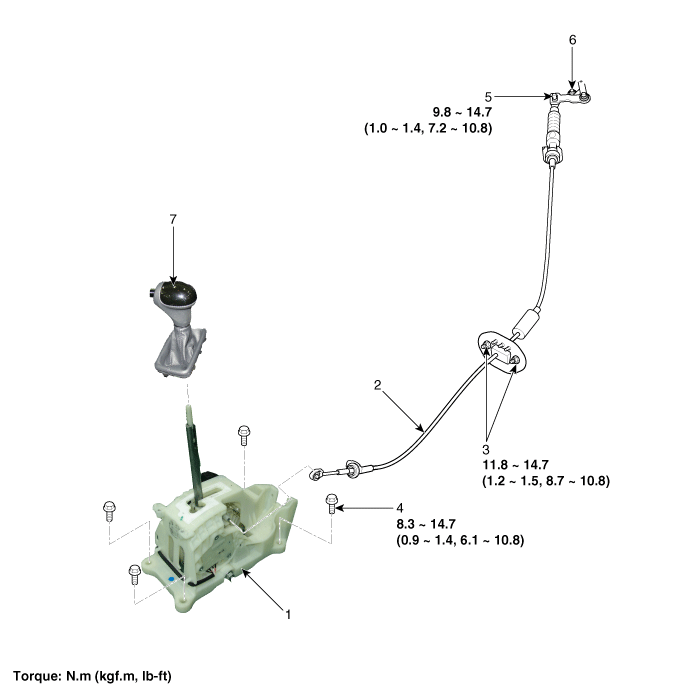

Components

1. Shift lever assembly
2. Shift cable assembly
3. Retainer

4. Bolt
5. Nut
6. Manual control lever

Inhibitor Switch Repair procedures

Inspection 1. Inspect for loosened connectors, faulty connections, bends, corrosion, contamination, deformation, or damage. 2. Dis ...

Shift Lever Repair procedures

Removal 1. Remove the floor console assembly. (Refer to Body - "Floor Console") 2. Remove the air duct. ...
