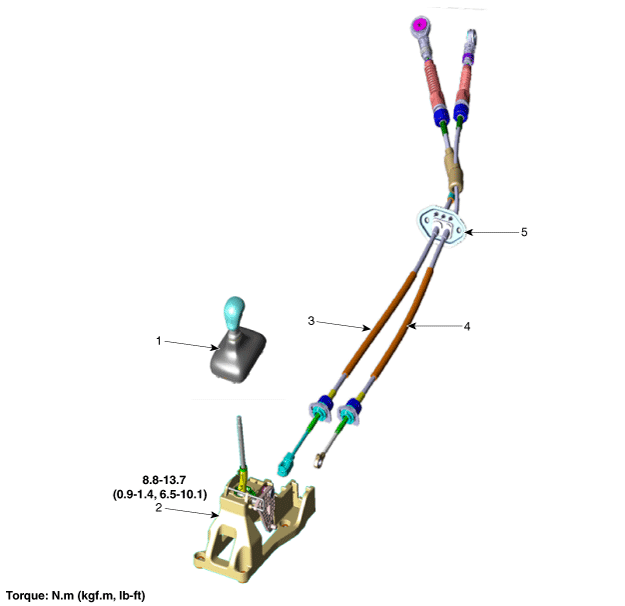

Components

1. Knob & Boots
2. Shift lever assembly

3. Shift cable
4. Select cable
5. Control cable retainer

Manual Transaxle Control System

...

Shift Lever Repair procedures

Removal 1. Disconnect the battery negative (-) cable. 2. Remove the gear boots (A) and then remove the shift lever knob (B) by rota ...
