Kia Cee'd: Seat Electrical / Seat Heater Switch Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Schematic diagrams

Circuit Diagram

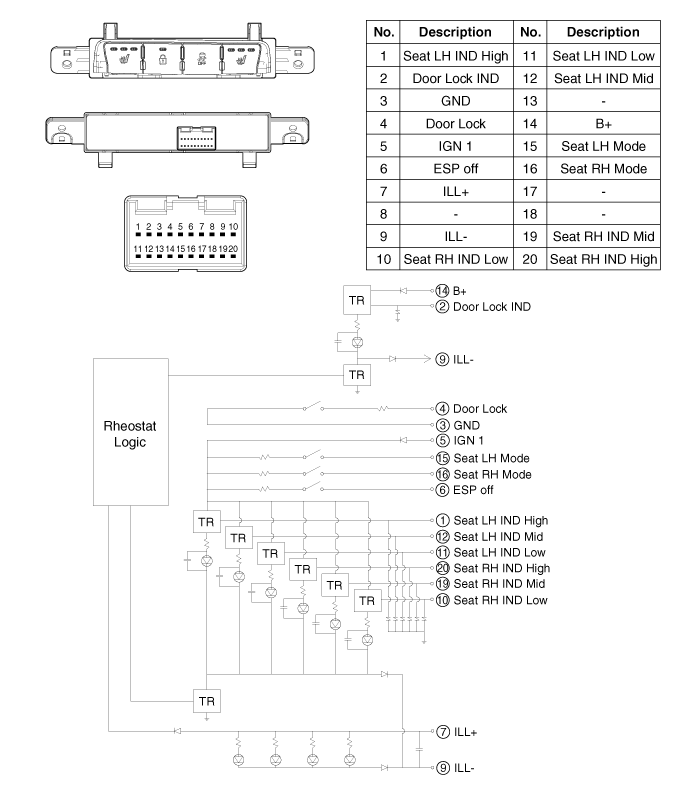

[LHD]

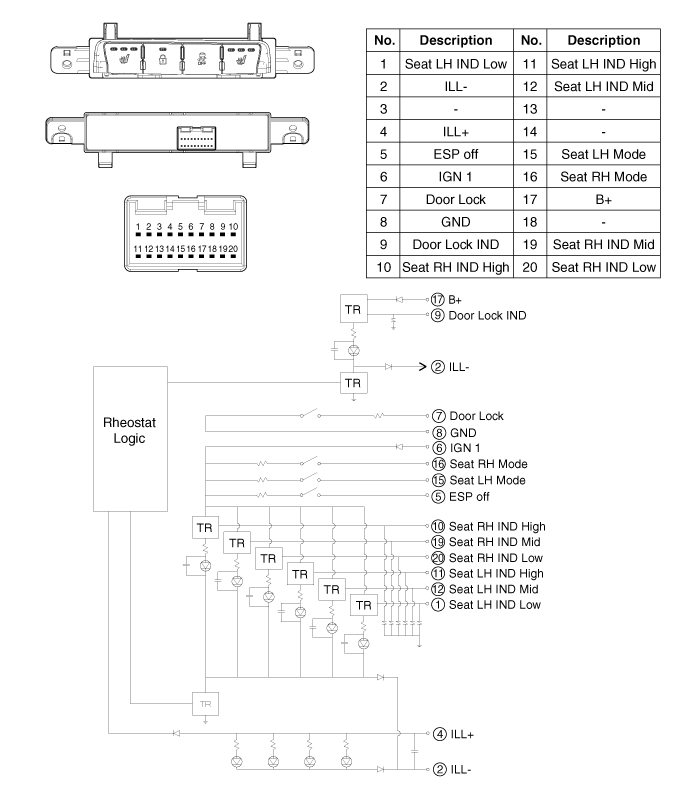

[RHD]

Power Seat Control Switch Repair procedures
Inspection 1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, r ...

Seat Heater Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad center lower panel. (Refer to Body - "Cra ...
