Kia Cee'd: Crankcase Emission Control System / Schematic diagrams
Kia Cee'd JD Service Manual / Emission Control System / Crankcase Emission Control System / Schematic diagrams

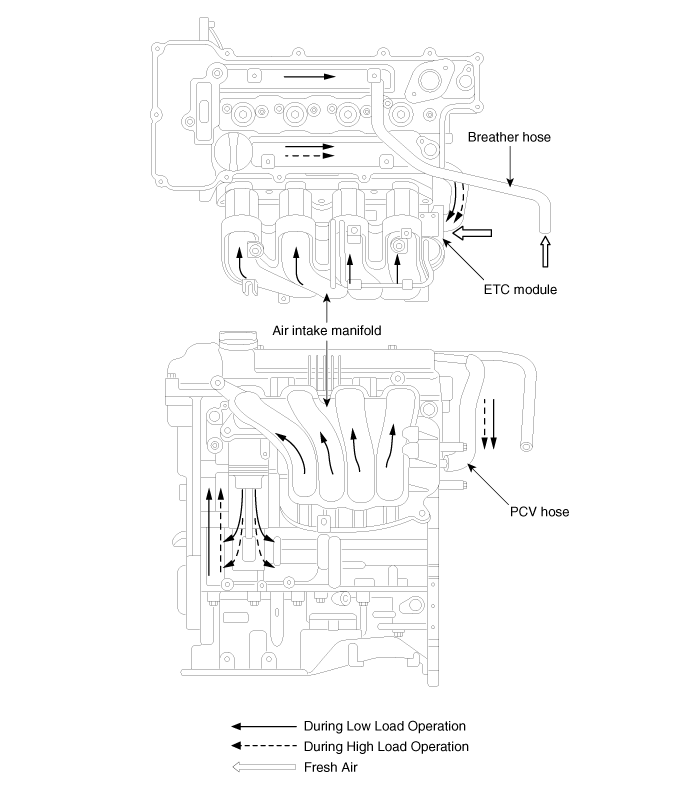

| Schematic Diagram |
Repair procedures
Inspection
1.
After disconnecting the vapor hose from the PCV valve, remove the PCV
valve.
2.
Reconnect the PCV valve to the vapor ...
