Kia Cee'd: Button Engine Start System / Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Button Engine Start System / Schematic diagrams

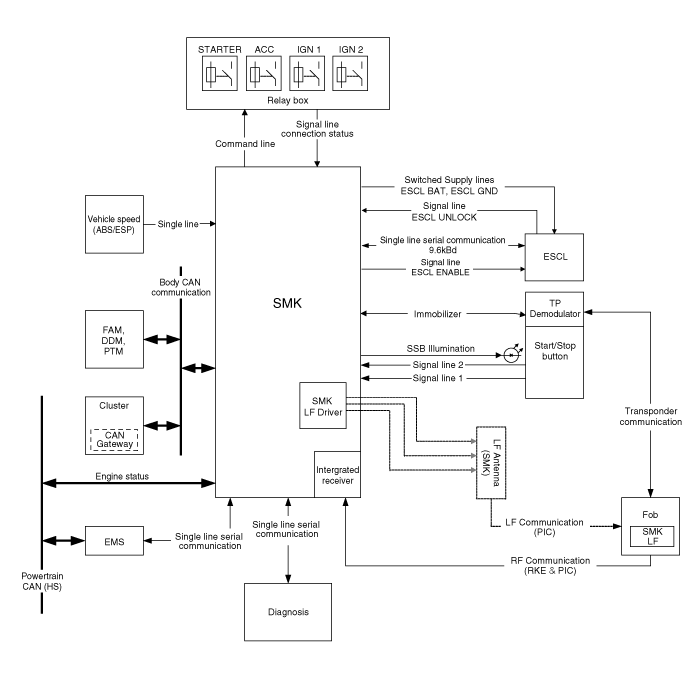

Circuit Diagram

Components and components location

Component Location 1. Start Stop Button (SSB) 2. FOB key 3. Smart key unit 4. Interior antenna 1 5. Interior antenna 2 6. Trunk antenna ...

Description and operation

Description System Overview The System offers the following features: – Human machine interface through a 1-stage button, for terminal switching and en ...
