Kia Cee'd: Auto Lighting Control System / Schematic diagrams

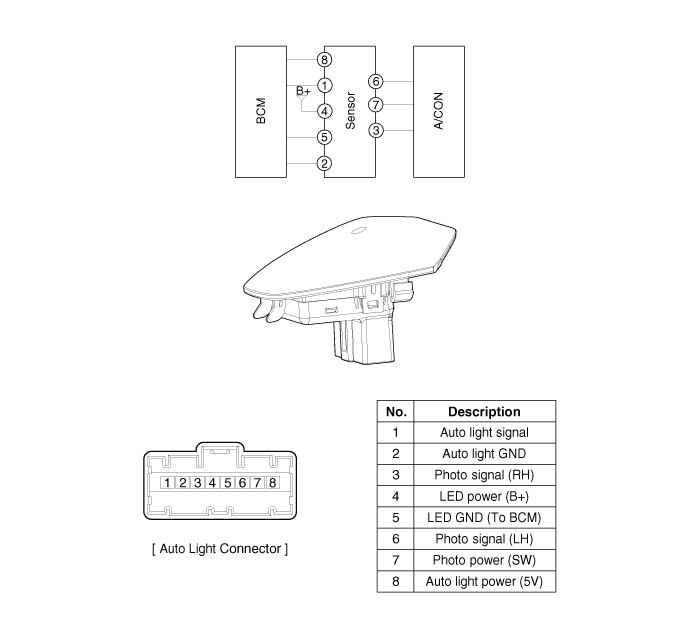

Circuit Diagram

Components and components location
Component Location   1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) 4. Tail lamps 5. Body control module (BCM) ...

Auto Light Sensor Repair procedures
Inspection In the state of IGN1 ON, when multifunction switch module detects auto light switch on, tail lamp relay output and head lamp low relay output are controlled according ...
