Kia Cee'd: Head Lamp Leveling Device / Schematic diagrams

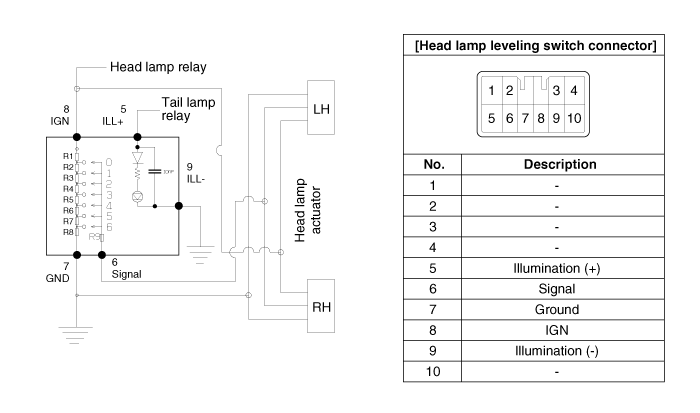

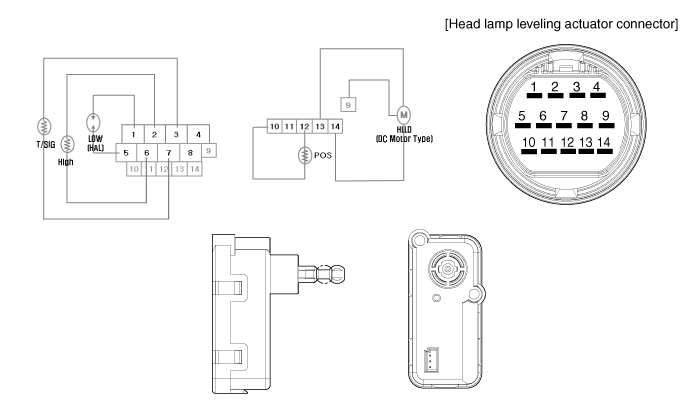

Circuit Diagram

Components and components location
Component Location   1. Head lamp leveling switch 2. Head lamp leveling actuator (Built into the head lamp assembly) ...

Head Lamp Leveling Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad ...
