Kia Cee'd: Panoramaroof / Schematic diagrams

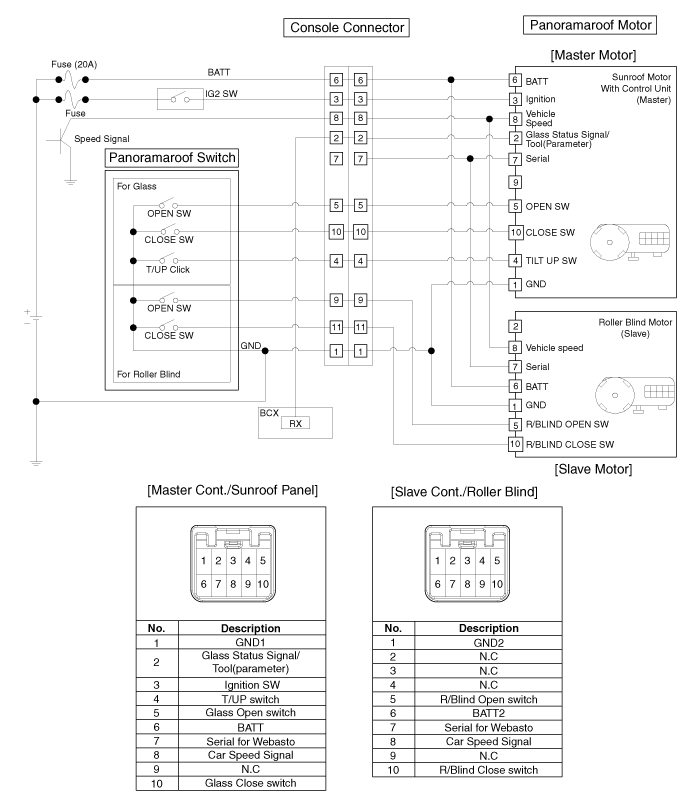

Circuit Diagram

Components and components location

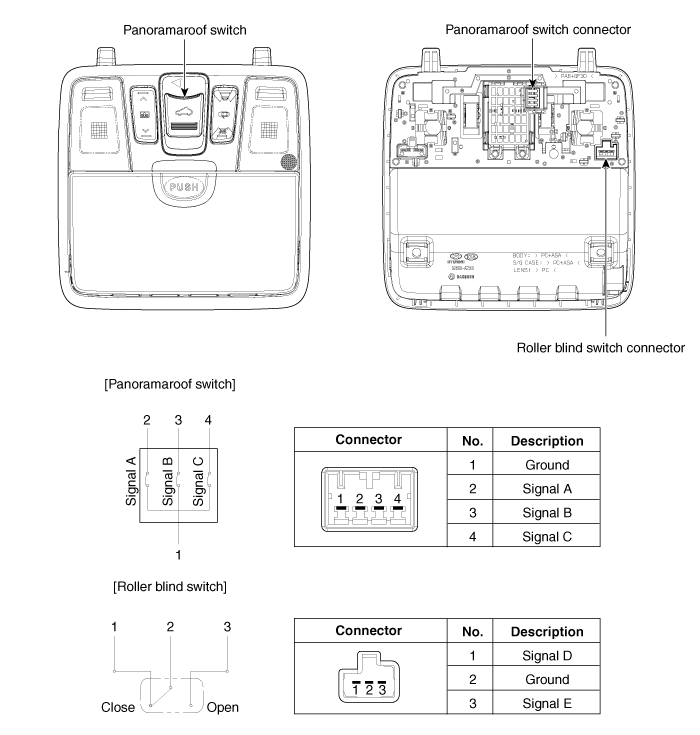

Component Location   1. Panoramaroof 2. Panoramaroof switch 3. Panoramaroof motor & controller 4. Roller blind motor & slave controller ...

Panoramaroof Switch Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove the ...
