Kia Cee'd: Ignition System / Repair procedures
| Inspect ignition coil assembly and
Perform spark test |
| 1. |
Check for DTCs.
| •
|
If a DTC is present, perform troubleshooting in accordance
with the procedure for that DTC. (Refer to DTC guide)
|
|
|
| 2. |
Check if sparks occur.
| (1) |
Remove the engine cover.
|
| (2) |
Remove the cylinder head center cover.
|
| (3) |
Remove the ignition coils.
|
| (4) |
Using a spark plug wrench, remove the spark plugs.
|
| (5) |
Disconnect the 4 injector connectors.
|
| (6) |
Ground the spark plug to the engine.
|
| (7) |
Check if sparks occur at each spark plug while engine is being
cranked.
|
| •
|
Do not crank the engine for more then 5 seonds.
|
|
|
| 3. |

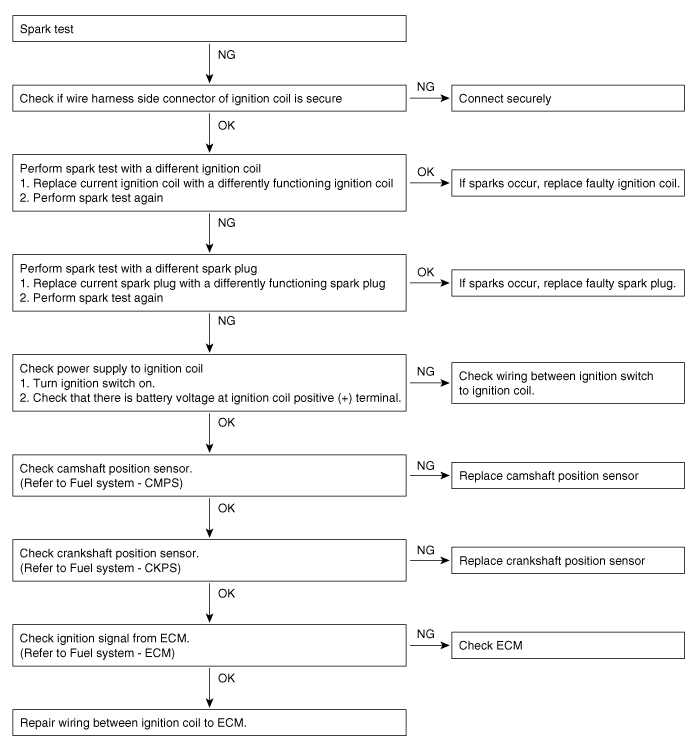

If sparks do not occur, perform the following test.
|
| 4. |
Using a spark plug wrench, install spark plugs.
|
| 5. |
Install the ignition coils.
|
| 6. |
Install the cylinder head center cover and the engine cover.
|
